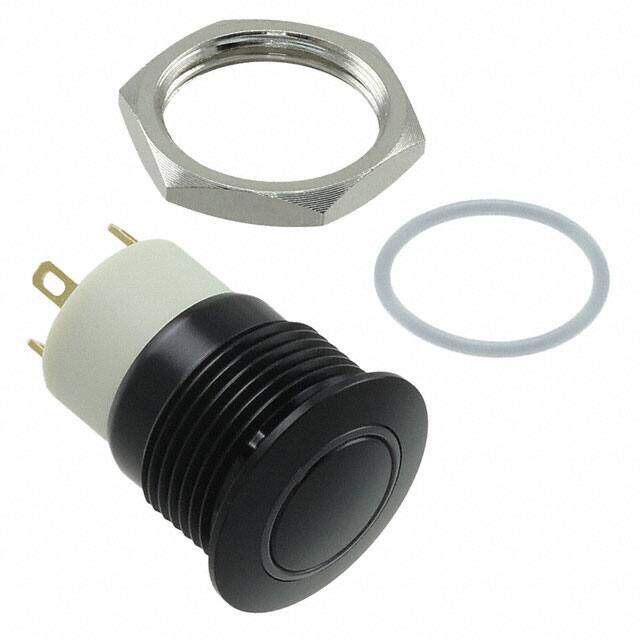

PVA6LRE21131
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 2A 36V
PDF
/
Buying Options
Total Price: USD $12.5
Unit Price: USD $12.496
≥1 USD $12.496
≥10 USD $11.2904
≥100 USD $10.747062
≥500 USD $10.2036
≥1000 USD $9.84133
≥3000 USD $9.237554
Inventory: 391
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 19.6mm
Technical
Operating Force-Max 5.98 N
Contact Current Rating 2A
Mechanical Life 100,000 Cycles
Electrical Life 100,000 Cycles
Contact Voltage(DC)-Max 36V
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2.8V~3.7VDC
Contact Current(DC)-Max 2A
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function Off-On
Circuit SPST
Actuator Type Round, Button, Flush
Body Length or Diameter 15.3mm
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 2A DC
Voltage - Rated DC 36V
HTS Code 8536.50.90.31
Terminal Finish Gold Flash (Au)
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PVA6
Packaging Tray
Operating Temperature -20°C~70°C
Physical
Surface Mount NO
Mounting Type Panel Mount, Front
Supply Chain
Factory Lead Time 9 Weeks
