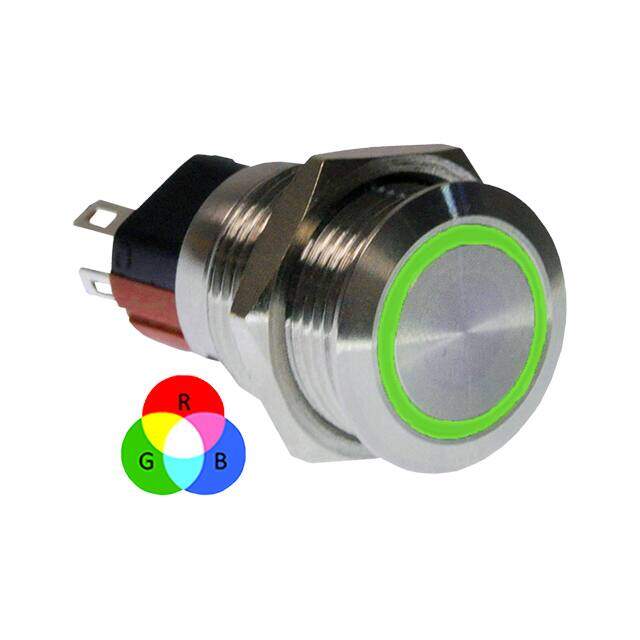

PVA3F2B0SS3R1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
ANTI-VANDAL ILLUMINATED 16MM SEA
PDF
/
Buying Options
Total Price: USD $17.51
Unit Price: USD $17.512
≥1 USD $17.512
≥10 USD $15.906
≥100 USD $14.3869
≥500 USD $13.85076
≥1000 USD $12.957182
≥3000 USD $11.0594
Inventory: 143
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Panel Mount, Front
Technical
Operating Temperature -25°C~55°C
Packaging Bulk
Series PVA3
Feature Stainless Steel
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Anti-Vandal, Illuminated
Voltage - Rated DC 36V
Current Rating (Amps) 2A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Termination Style Solder Lug
Actuator Type Round, Button, Flush
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 1.8 2.8VDC
Illumination Type, Color LED, Red/Green/Blue
Electrical Life 50,000 Cycles
Mechanical Life 500,000 Cycles
Compliance
RoHS Status ROHS3 Compliant
