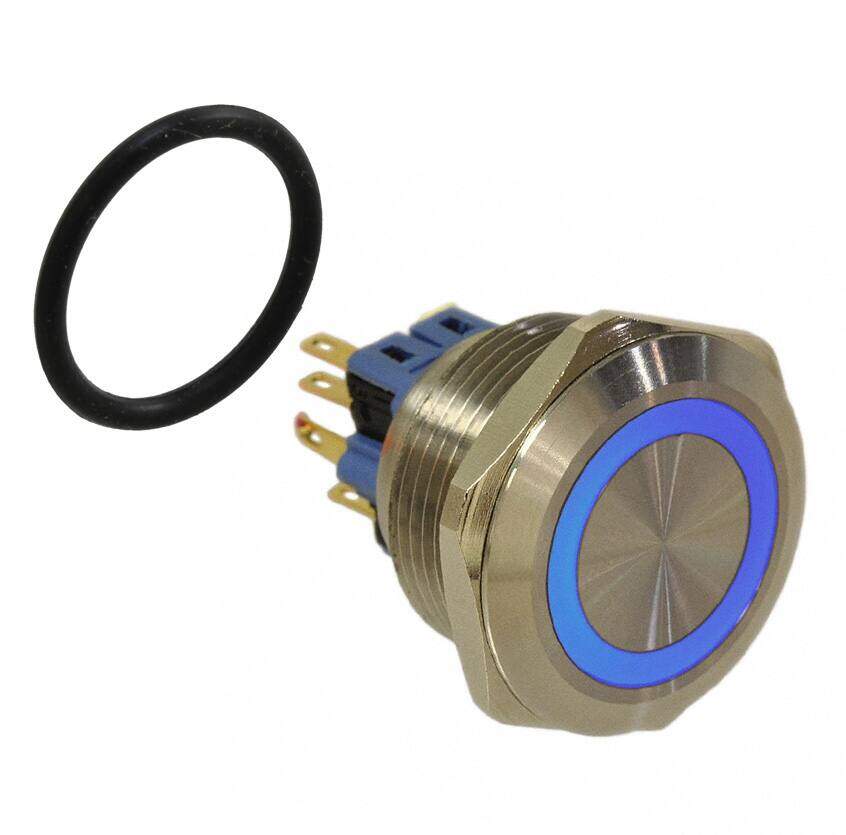

PV9F2U0SS-311
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON 4PST 2A 48V
PDF
/
Buying Options
Total Price: USD $31.85
Unit Price: USD $31.8472
≥1 USD $31.8472
≥10 USD $28.98632
≥100 USD $27.63816
≥500 USD $25.784352
≥1000 USD $24.773232
≥3000 USD $23.087962
Inventory: 55
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2014
Series PV9, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Voltage - Rated DC 48V
Current Rating (Amps) 2A DC
Ingress Protection IP66 - Dust Tight, Water Resistant
Current Rating 2A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Actuator Type Round, Button, Flush
Circuit 4PST-2NO/2NC
Switch Function On-Off, Off-On
Panel Cutout Dimensions Circular - 28.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Silver
Contact Current(DC)-Max 2A
Illumination Voltage (Nominal) 1.8VDC
Illumination Type, Color LED, Red
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 50,000 Cycles
Throw Configuration 4PST
Mechanical Life 1,000,000 Cycles
Illumination Type LED
Contact (DC) Max Rating R Load 2A@48VDC
Actuator Travel 2.794 mm
Bushing Diameter 1.102 inch
Actuator Finish STAINLESS STEEL
Dimensions
Actuator Length 0.079 inch
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP65, Water Resistant
