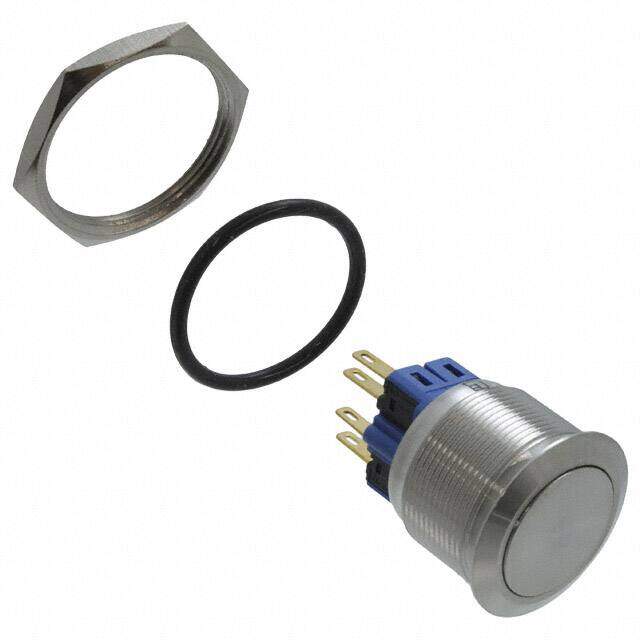

PV8F2Y0SS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 2A 36V
PDF
/
Buying Options
Total Price: USD $11.48
Unit Price: USD $11.4752
≥1 USD $11.4752
≥10 USD $10.42184
≥100 USD $10.3081
Inventory: 578
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.079 inch
Length - Termination 0.41 inch
Body Height 8.6868mm
Technical
Contact (DC) Max Rating R Load 2A@48VDC
Hole Diameter 22 mm
Illumination Color White
Illumination Type LED
Contact Current Rating 2A
Mechanical Life 1,000,000 Cycles
Throw Configuration 4PDT, DPST
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Contact Voltage(DC)-Max 48V
Contact Current(DC)-Max 2A
Color - Actuator/Cap Silver
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 25.00mm Dia
Switch Function On-Mom, Off-Mom
Circuit DPST-NO/NC
Actuator Type Round, Button, Flush
Body Length or Diameter 24.9936mm
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 2A DC
Voltage - Rated DC 36V
Type Anti-Vandal
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV8, LAMB
Published 2011
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Terminal Material BRASS
Housing Material Stainless Steel
Mounting Type Panel Mount, Front
Mount Bushing, Front, Panel
Contact Plating Gold
Supply Chain
Factory Lead Time 9 Weeks
