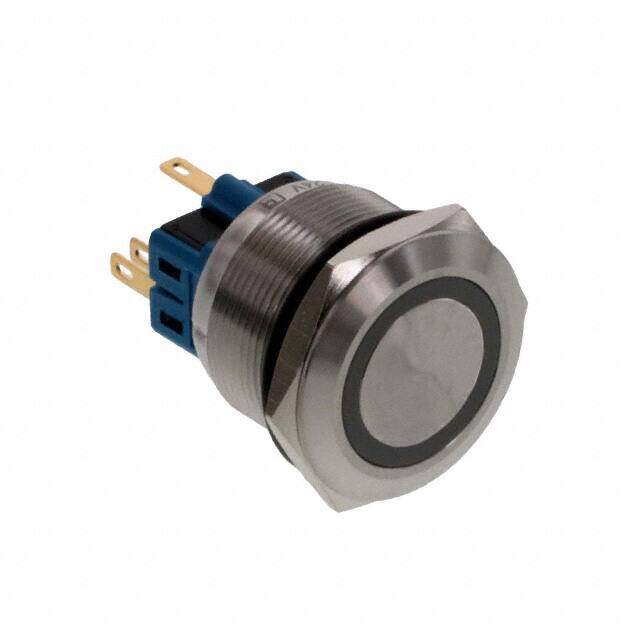

PV8F2Y0SS-315
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches 0-2A 48VDC Off (On)+ On-(Off) 25mm 2 Pole
PDF
/
Buying Options
Total Price: USD $21.51
Unit Price: USD $21.5072
≥1 USD $21.5072
≥10 USD $19.52896
≥100 USD $17.00556
Inventory: 159
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant
Technical
Illumination Color Red
Illumination Type LED
Mechanical Life 1,000,000 Cycles
Throw Configuration DPDT, DPST
Electrical Life 50,000 Cycles
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 24VDC
Panel Cutout Dimensions Circular - 25.00mm Dia
Switch Function On-Mom, Off-Mom
Circuit DPST-NO/NC
Actuator Type Round, Button, Flush
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 2A DC
Voltage - Rated DC 36V
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV8, LAMB
Published 2012
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 9 Weeks
