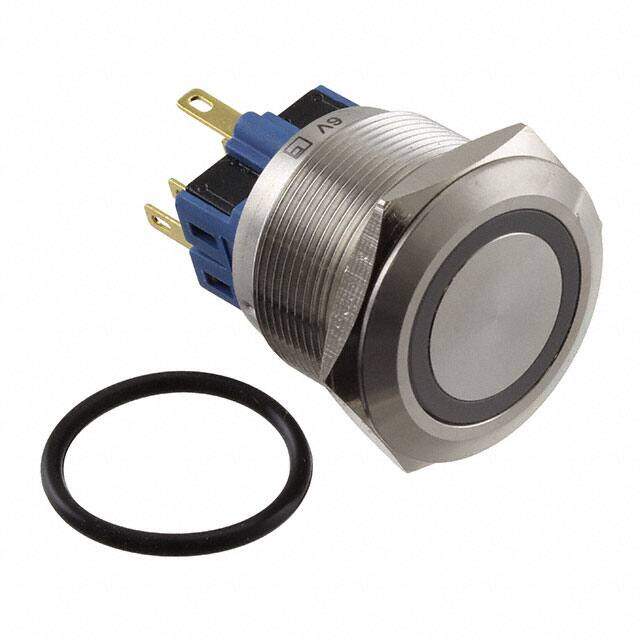

PV8F2Y0SS-313
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Inventory: 6153
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Stainless Steel
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2011
Series PV8, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Additional Feature ROHS COMPLIANT
Voltage - Rated DC 36V
Current Rating (Amps) 2A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 2A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Body Length or Diameter 27.8892mm
Actuator Type Round, Button, Flush
Circuit DPST-NO/NC
Switch Function On-Mom, Off-Mom
Panel Cutout Dimensions Circular - 25.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Silver
Contact Current(DC)-Max 2A
Illumination Voltage (Nominal) 6VDC
Illumination Type, Color LED, Red
Contact Voltage(DC)-Max 48V
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 50,000 Cycles
Throw Configuration DPDT, DPST
Mechanical Life 1,000,000 Cycles
Illumination Type LED
Illumination Color Red
Hole Diameter 22 mm
Contact (DC) Max Rating R Load 2A@48VDC
Actuator Travel 2.3876 mm
Dimensions
Actuator Length 0.094 inch
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
