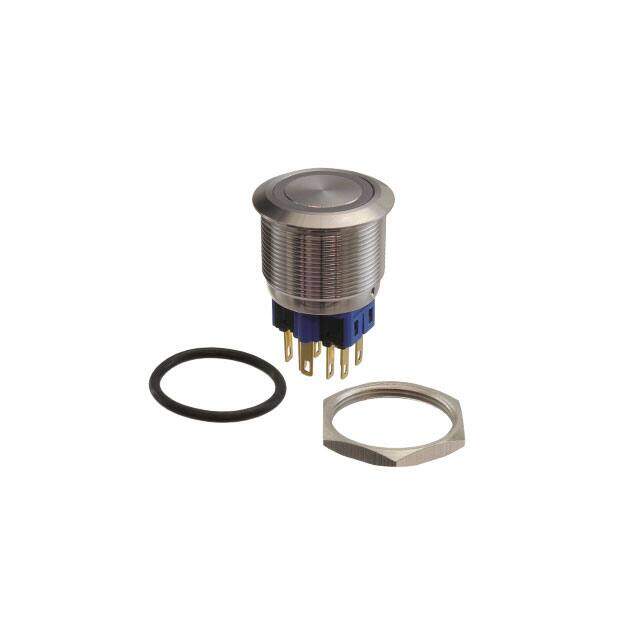

PV8F2V0SS-3N1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Buying Options
Total Price: USD $26.23
Unit Price: USD $26.2328
≥1 USD $26.2328
≥10 USD $23.82116
≥100 USD $20.743096
Inventory: 221
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.079 inch
Body Height 8.5852mm
Technical
Contact (DC) Max Rating R Load 2A@48VDC
Hole Diameter 22 mm
Illumination Color Orange
Illumination Type LED
Mechanical Life 1,000,000 Cycles
Throw Configuration 4PDT, 4PST
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Contact Voltage(DC)-Max 48V
Illumination Type, Color LED, Green/Blue
Illumination Voltage (Nominal) 2.8VDC
Contact Current(DC)-Max 2A
Color - Actuator/Cap Silver
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 25.00mm Dia
Switch Function On-Mom, Off-Mom
Circuit 4PST-2NO/2NC
Actuator Type Round, Button, Flush
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 2A DC
Voltage - Rated DC 36V
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV8, LAMB
Published 2011
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Terminal Material BRASS
Housing Material Stainless Steel
Mounting Type Panel Mount, Front
Mount Bushing, Front, Panel
Supply Chain
Factory Lead Time 9 Weeks
