PV7F2Y0SS-M04
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

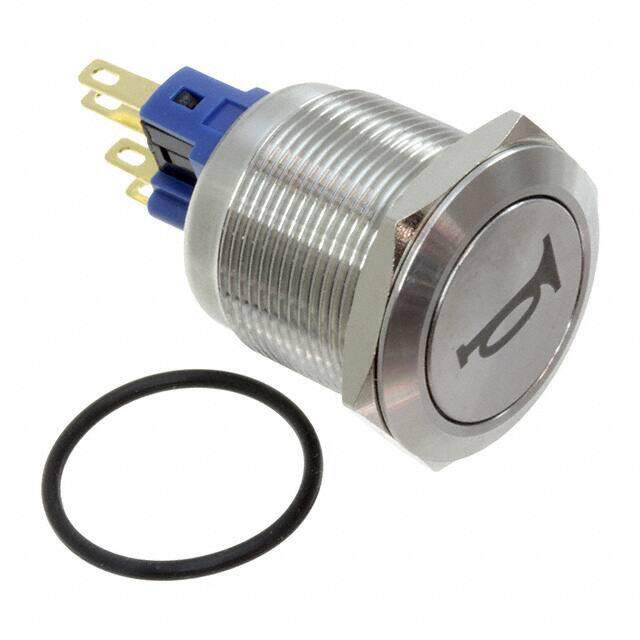

Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Buying Options
Total Price: USD $21.86
Unit Price: USD $21.8592
≥1 USD $21.8592
≥10 USD $19.85192
≥100 USD $17.95574
≥500 USD $17.286632
≥1000 USD $16.171355
≥3000 USD $13.8028
Inventory: 100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Stainless Steel
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2012
Series PV7, LAMB
Feature Horn Symbol
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal
Voltage - Rated DC 48V
Current Rating (Amps) 2A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 2A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Actuator Type Round, Button, Flush
Circuit DPST-NO/NC
Switch Function On-Mom, Off-Mom
Panel Cutout Dimensions Circular - 22.00mm Dia
Color - Actuator/Cap Silver
Electrical Life 50,000 Cycles
Throw Configuration DPST, SPDT
Mechanical Life 1,000,000 Cycles
Illumination Type Illuminated
Illumination Color White
Hole Diameter 22 mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP65, Water Resistant
