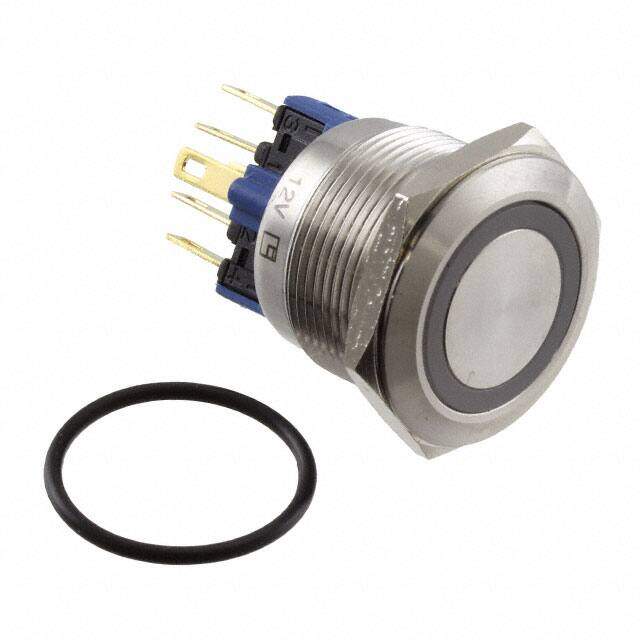

PV7F2Y0SS-334
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 2A 48V
PDF
/
Buying Options
Total Price: USD $19.84
Unit Price: USD $19.8352
≥1 USD $19.8352
≥10 USD $18.01184
≥100 USD $16.29166
≥500 USD $15.684416
≥1000 USD $14.672548
≥3000 USD $12.523491
Inventory: 59
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.079 inch
Technical
Contact (DC) Max Rating R Load 2A@48VDC
Illumination Type LED
Mechanical Life 1,000,000 Cycles
Throw Configuration DPST
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 12VDC
Contact Current(DC)-Max 2A
Color - Actuator/Cap Silver
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 22.00mm Dia
Switch Function On-Mom, Off-Mom
Circuit DPST-NO/NC
Actuator Type Round, Button, Flush
Body Length or Diameter 24.7904mm
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 2A DC
Voltage - Rated DC 48V
Additional Feature ROHS COMPLIANT
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV7, LAMB
Published 2009
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Actuator Material STAINLESS STEEL
Housing Material STAINLESS STEEL
Insulation Material POLYBUTYLENE TEREPHTHALATE
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 9 Weeks
