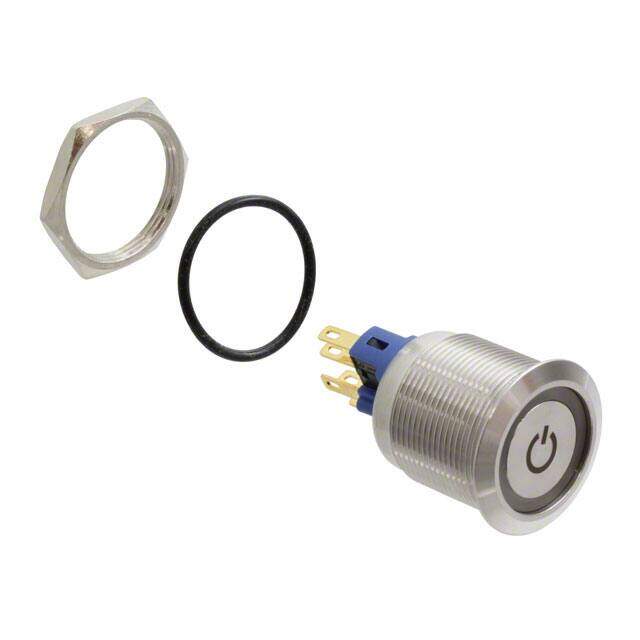

PV7F2T0SS-341-M01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 2A 48V
PDF
/
Buying Options
Total Price: USD $24.11
Unit Price: USD $24.112
≥1 USD $24.112
≥10 USD $21.89616
≥100 USD $20.911616
≥500 USD $19.804576
≥1000 USD $19.06652
≥3000 USD $17.836438
Inventory: 255
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.079 inch
Length - Termination 0.405 inch
Body Height 8.509mm
Technical
Actuator Finish STAINLESS STEEL
Bushing Diameter 0.866 inch
Contact Function OFF-ON-OFF
Contact (DC) Max Rating R Load 2A@48VDC
Illumination Type LED
Contact Current Rating 2A
Mechanical Life 1,000,000 Cycles
Throw Configuration DPST
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 2.8VDC
Contact Current(DC)-Max 2A
Color - Actuator/Cap Silver
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 22.00mm Dia
Switch Function On-Off, Off-On
Circuit DPST-NO/NC
Actuator Type Round, Button, Flush
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 2A DC
Voltage - Rated DC 48V
Additional Feature BLUE LENS COLOR
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Power Symbol
Series PV7, LAMB
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Terminal Material BRASS
Insulation Material POLYAMIDE
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 9 Weeks
