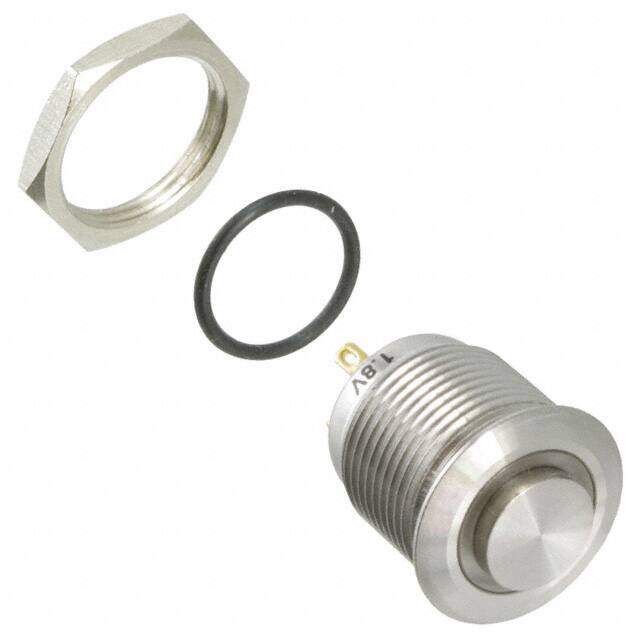

PV6H240SS-341
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 2A 48V
PDF
/
Buying Options
Total Price: USD $12.32
Unit Price: USD $12.32
≥1 USD $12.32
≥10 USD $11.1276
≥100 USD $10.592032
≥500 USD $10.05642
≥1000 USD $9.69936
≥3000 USD $9.104295
Inventory: 1129
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Illumination Color Blue
Illumination Type LED
Contact Current Rating 2A
Mechanical Life 1,000,000 Cycles
Throw Configuration SPST
Electrical Life 200,000 Cycles
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 2.8VDC
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Termination Style Solder Lug
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 2A DC
Voltage - Rated DC 48V
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV6, LAMB
Published 2012
Packaging Tray
Operating Temperature -20°C~70°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 9 Weeks
