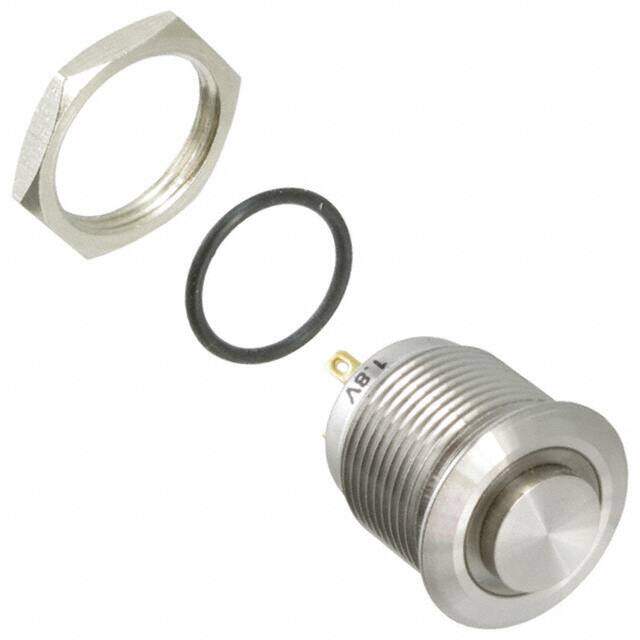

PV6H240NN-3R1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST-NO 2A 48V
PDF
/
Buying Options
Total Price: USD $16.1
Unit Price: USD $16.0952
≥1 USD $16.0952
≥10 USD $13.08274
≥100 USD $12.6071
Inventory: 156
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2016
Series PV6, LAMB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Anti-Vandal, Illuminated
Voltage - Rated DC 48V
Current Rating (Amps) 2A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 2A
Termination Style Solder Lug
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 1.8 2.8 2.8VDC
Illumination Type, Color LED, Red/Green/Blue
Electrical Life 200,000 Cycles
Throw Configuration SPST
Mechanical Life 1,000,000 Cycles
Illumination Type LED
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
