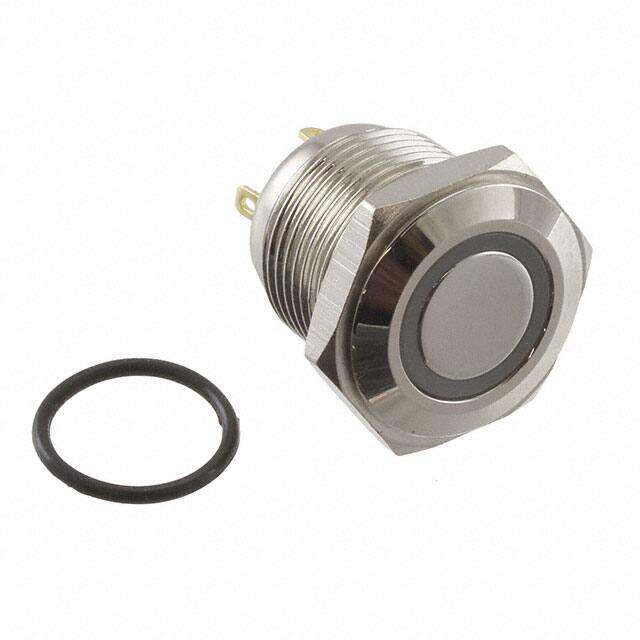

PV6F240NNG-341 image
Favorite
PV6F240NNG-341 image
Favorite

PV6F240NNG-341

E-Switch
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description Illuminated Pushbutton Switches 0-2A 48VDC Off (On) 16mm Nickel Flat
PDF
/
Inventory: 910
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant

Dimensions

Actuator Length 0.059 inch
Length - Termination 0.145 inch
Body Height 16.6116mm

Technical

Actuator Finish NICKEL
Life (Cycles) 50000 cycles
Contact Function OFF-(ON)
Contact (DC) Max Rating R Load 2A@48VDC
Illumination Color Blue
Illumination Type LED
Mechanical Life 1,000,000 Cycles
Throw Configuration SPST
Electrical Life 200,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 2.8VDC
Contact Current(DC)-Max 2A
Color - Actuator/Cap Silver
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button, Flush
Body Length or Diameter 17.8054mm
Termination Style Solder Lug
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 2A DC
Voltage - Rated DC 48V
Additional Feature ROHS COMPLIANT
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV6, LAMB
Published 2012
Packaging Bulk
Operating Temperature -20°C~70°C

Physical

Actuator Material STAINLESS STEEL
Housing Material STAINLESS STEEL
Insulation Material POLYBUTYLENE TEREPHTHALATE
Mounting Type Panel Mount, Front
Mount Bushing, Front, Panel
Contact Plating Gold

Supply Chain

Factory Lead Time 9 Weeks
