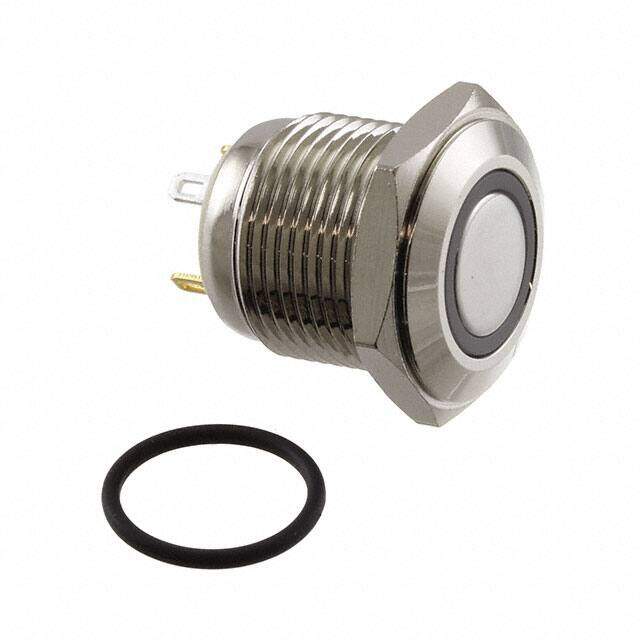

PV6F240NN-331
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 2A 48V
PDF
/
Buying Options
Total Price: USD $9.3
Unit Price: USD $9.3016
≥1 USD $9.3016
≥10 USD $7.6351
≥100 USD $7.32798
≥500 USD $6.14321
Inventory: 84
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Insulation Material POLYBUTYLENE TEREPHTHALATE
Housing Material STAINLESS STEEL
Actuator Material STAINLESS STEEL
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2012
Series PV6, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Additional Feature ROHS COMPLIANT
Voltage - Rated DC 48V
Current Rating (Amps) 2A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 2A
Termination Style Solder Lug
Body Length or Diameter 17.8054mm
Actuator Type Round, Button, Flush
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Silver
Contact Current(DC)-Max 2A
Illumination Voltage (Nominal) 2.8VDC
Illumination Type, Color LED, Green
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 200,000 Cycles
Throw Configuration SPST
Mechanical Life 1,000,000 Cycles
Illumination Type LED
Contact (DC) Max Rating R Load 2A@48VDC
Contact Function OFF-(ON)
Actuator Finish NICKEL
Dimensions
Body Height 16.6116mm
Length - Termination 0.145 inch
Actuator Length 0.059 inch
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
