PV5S64011
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

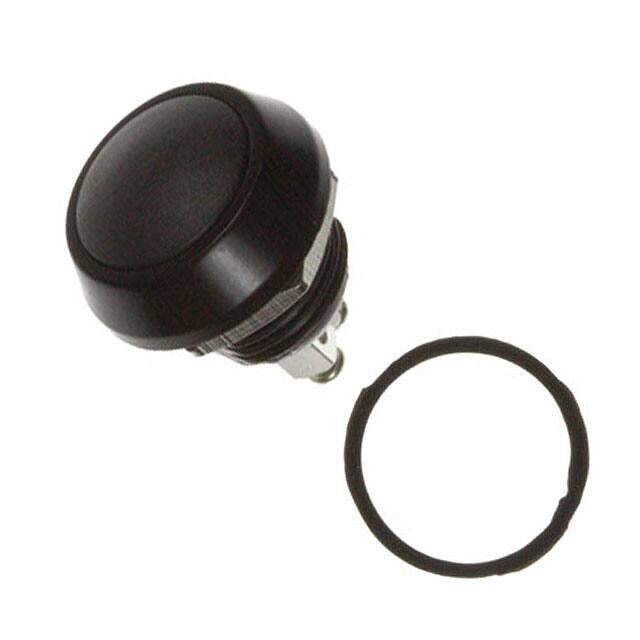

E-SWITCH PV5S64011 ANTI-VADAL PUSHBUTTON SWITCH, SPST, 2A, 48VDC
PDF
/
Buying Options
Total Price: USD $1.26
Unit Price: USD $1.257758
≥1 USD $1.257758
Inventory: 1176
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 2.2mm
Technical
Hole Diameter 12 mm
Contact Current Rating 2A
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 48V
Throw Configuration SPST
Electrical Life 200,000 Cycles
Color - Actuator/Cap Black
Contact Resistance 50mOhm
Panel Cutout Dimensions Circular - 12.00mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button, Domed
Termination Style Screw Terminal
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Orientation Straight
Current Rating (Amps) 2A DC
Voltage - Rated DC 36V
Type Anti-Vandal
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV5, LAMB
Published 2012
Packaging Bulk
Operating Temperature -20°C~70°C
Physical
Actuator Material Polybutylene
Housing Material PBT
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Silver
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
