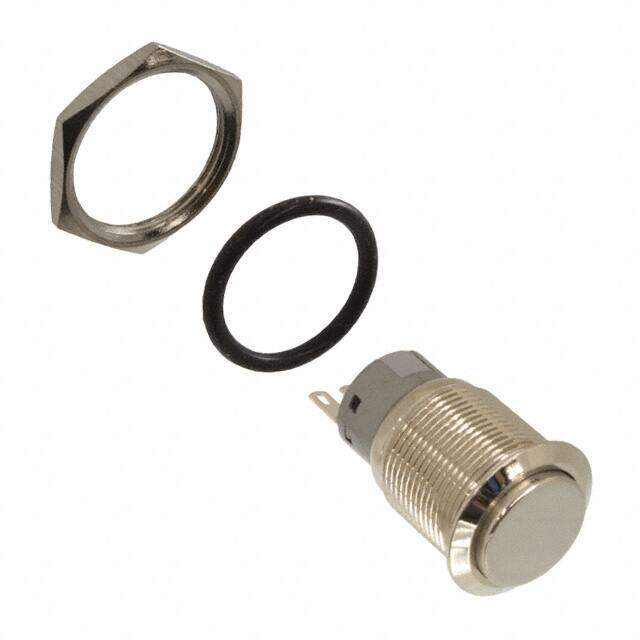

PV4H230NN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 2A 24V
PDF
/
Buying Options
Total Price: USD $14.4
Unit Price: USD $14.397711
≥1 USD $14.397711
≥10 USD $13.58274
≥100 USD $12.813912
≥500 USD $12.088592
≥1000 USD $11.40434
Inventory: 1506
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Insulation Material POLYBUTYLENE TEREPHTHALATE
Center Contact Material BRASS
Terminal Material BRASS
End Contact Material BRASS
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Series PV4, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal
Voltage - Rated DC 24V
Current Rating (Amps) 2A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 2A
Termination Style Solder Lug
Actuator Type Round, Button
Circuit SPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 19.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Silver
Contact Current(DC)-Max 2A
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Contact Current Rating 2A
Contact (DC) Max Rating R Load 2A@48VDC
Contact Function ON-(ON)
Actuator Travel 2.794 mm
Bushing Diameter 0.748 inch
Dimensions
Length - Termination 0.256 inch
Actuator Length 0.079 inch
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
