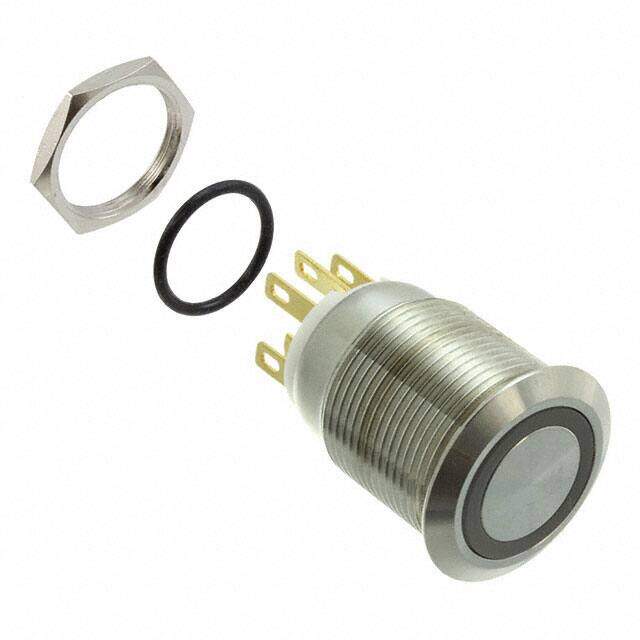

PV4F2Y0SS-3G5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Buying Options
Total Price: USD $25.36
Unit Price: USD $25.364704
≥1 USD $25.364704
≥10 USD $23.928963
≥100 USD $22.574498
≥500 USD $21.296693
≥1000 USD $20.091219
Inventory: 1117
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Silver
Mount Bushing, Front, Panel
Mounting Type Panel Mount, Front
Housing Material Stainless Steel
Terminal Material BRASS
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2011
Series PV4, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Additional Feature ILLUMINATION COLOR - RED/GREEN
Voltage - Rated DC 24V
Current Rating (Amps) 2A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 2A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Actuator Type Round, Button, Flush
Circuit DPST-NO/NC
Switch Function On-Mom, Off-Mom
Panel Cutout Dimensions Circular - 19.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Contact Current(DC)-Max 2A
Illumination Voltage (Nominal) 24VDC
Illumination Type, Color LED, Red/Green
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 50,000 Cycles
Throw Configuration DPDT, DPST
Mechanical Life 1,000,000 Cycles
Illumination Type LED
Illumination Color Blue
Hole Diameter 19 mm
Contact (DC) Max Rating R Load 2A@48VDC
Dimensions
Length - Termination 0.318 inch
Actuator Length 0.079 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-2
Ratings Dust Tight, IP65, Water Resistant
