PV4F2Y0SS-345
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

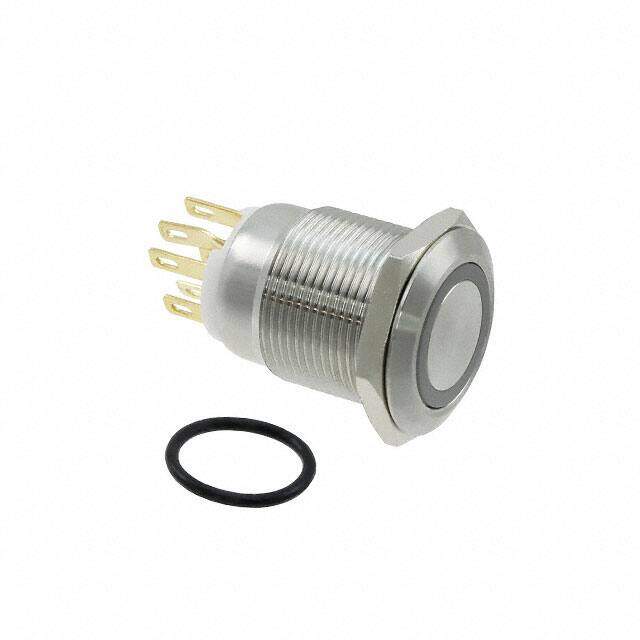

Illuminated Pushbutton Switches ANTI-VANDAL
PDF
/
Inventory: 924
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant
Technical
Illumination Color Blue
Illumination Type LED
Mechanical Life 1,000,000 Cycles
Throw Configuration DPST
Electrical Life 50,000 Cycles
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 24VDC
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 19.00mm Dia
Switch Function On-Mom, Off-Mom
Circuit DPST-NO/NC
Actuator Type Round, Button, Flush
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 2A DC
Voltage - Rated DC 24V
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV4, LAMB
Published 2012
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 9 Weeks
