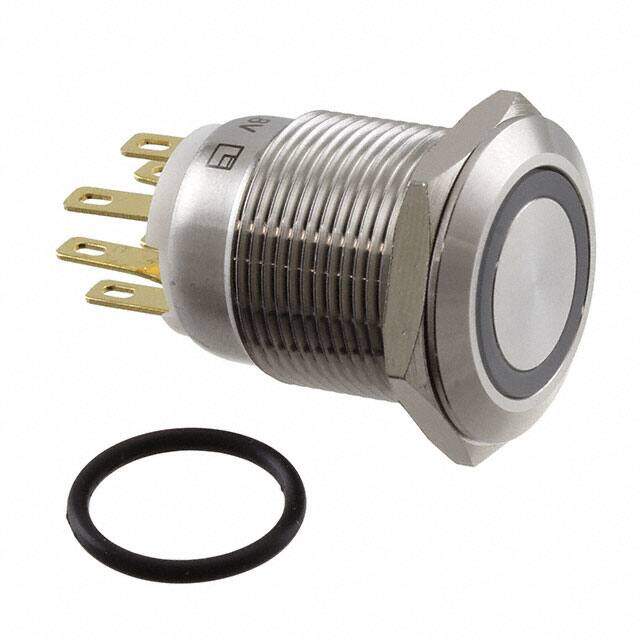

PV4F2Y0SS-331
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches 0-2A 48VDC Off(On)+ On(Off) Dbl Break
PDF
/
Inventory: 7375
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.079 inch
Length - Termination 0.318 inch
Technical
Actuator Finish STAINLESS STEEL
Bushing Diameter 0.748 inch
Contact (DC) Max Rating R Load 2A@48VDC
Illumination Color Green
Illumination Type LED
Mechanical Life 1,000,000 Cycles
Throw Configuration DPST
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2.8VDC
Contact Current(DC)-Max 2A
Color - Actuator/Cap Silver
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 19.00mm Dia
Switch Function On-Mom, Off-Mom
Circuit DPST-NO/NC
Actuator Type Round, Button, Flush
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 2A DC
Voltage - Rated DC 24V
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV4, LAMB
Published 2012
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
End Contact Material COPPER
Terminal Material BRASS
Center Contact Material COPPER
Housing Material STAINLESS STEEL
Insulation Material POLYCARBONATE
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 9 Weeks
