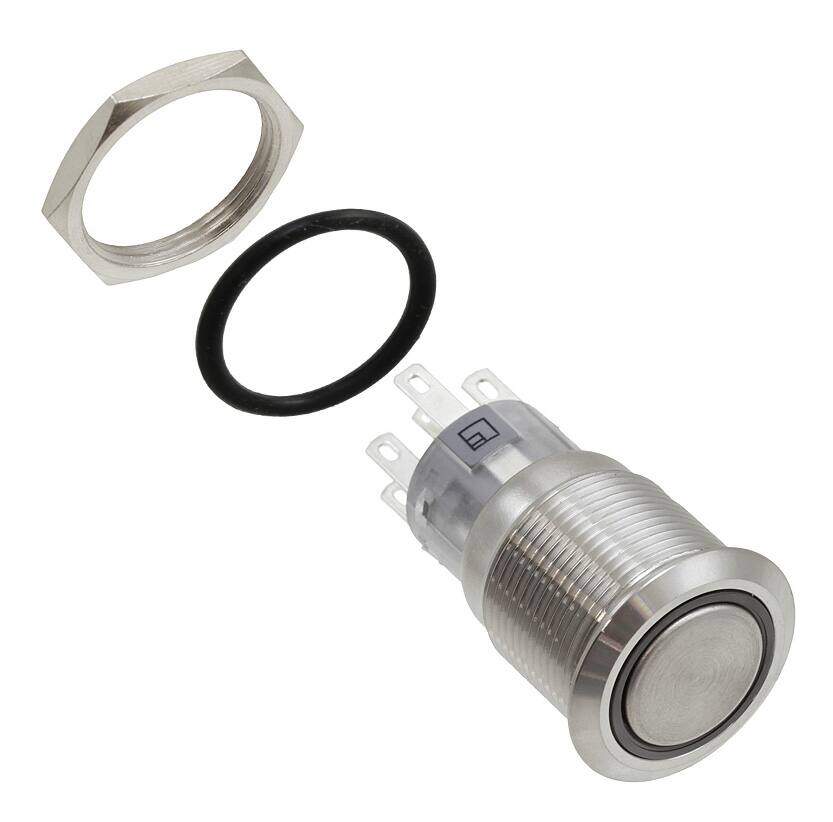

PV4F2G0SS-335
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Buying Options
Total Price: USD $23.87
Unit Price: USD $23.8656
≥1 USD $23.8656
≥10 USD $19.60134
≥100 USD $18.87094
Inventory: 100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Stainless Steel
Actuator Material ALUMINUM
Center Contact Material BRASS
Terminal Material BRASS
End Contact Material BRASS
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2011
Series PV4, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Voltage - Rated DC 24V
Current Rating (Amps) 2A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 2A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Actuator Type Round, Button, Flush
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 19.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Silver
Contact Current(DC)-Max 2A
Illumination Voltage (Nominal) 24VDC
Illumination Type, Color LED, Green
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Illumination Type LED
Illumination Color Green
Hole Diameter 19 mm
Contact (DC) Max Rating R Load 2A@48VDC
Actuator Travel 2.794 mm
Dimensions
Length - Termination 0.295 inch
Actuator Length 0.079 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-2
Ratings Dust Tight, IP65, Water Resistant
