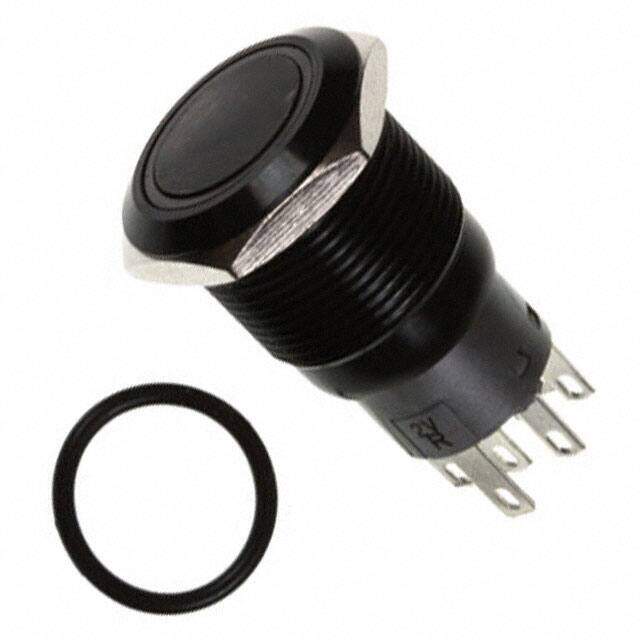

PV4F2G011-341
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 2A 24V
PDF
/
Buying Options
Total Price: USD $25
Unit Price: USD $25.0008
≥1 USD $25.0008
≥10 USD $20.53876
≥100 USD $19.77323
Inventory: 240
Minimum: 1
-
+
Technical Details
Technical
Illumination Type LED
Illumination Color Blue
Hole Diameter 19 mm
Contact (DC) Max Rating R Load 2A@48VDC
Bushing Diameter 0.748 inch
Contact Current Rating 2A
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 2.8VDC
Contact Current(DC)-Max 2A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 19.00mm Dia
Switch Function On-On
Circuit DPDT
Actuator Type Round, Button, Flush
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 2A DC
Voltage - Rated DC 24V
Color Silver
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV4, LAMB
Published 2012
Packaging Bulk
Operating Temperature -20°C~55°C
Dimensions
Actuator Length 0.079 inch
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP65, Water Resistant
Physical
End Contact Material COPPER
Terminal Material BRASS
Center Contact Material COPPER
Insulation Material POLYBUTYLENE TEREPHTHALATE
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 9 Weeks
