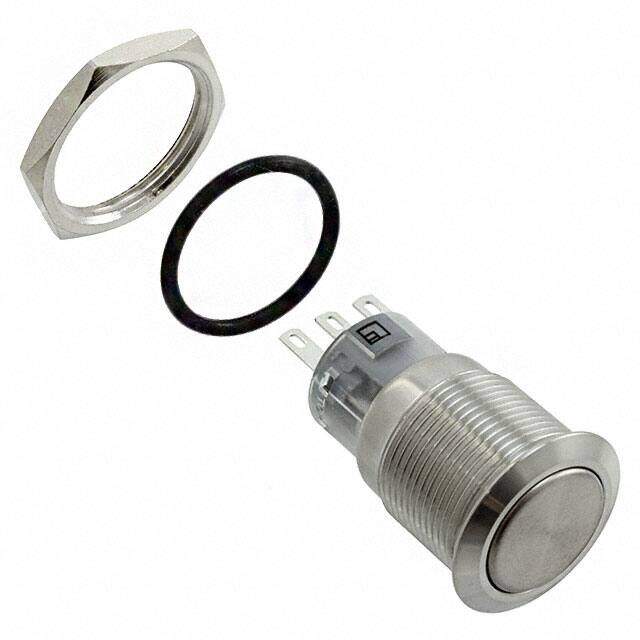

PV4F230SS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Buying Options
Total Price: USD $16.76
Unit Price: USD $16.7552
≥1 USD $16.7552
≥10 USD $15.21432
≥100 USD $15.048
Inventory: 65
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.079 inch
Length - Termination 0.315 inch
Technical
Actuator Finish STAINLESS STEEL
Contact (DC) Max Rating R Load 2A@48VDC
Hole Diameter 19 mm
Illumination Color Blue
Illumination Type LED
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Contact Current(DC)-Max 2A
Color - Actuator/Cap Silver
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 19.00mm Dia
Switch Function On-On
Circuit SPDT
Actuator Type Round, Button, Flush
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 2A DC
Voltage - Rated DC 24V
Type Anti-Vandal
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV4, LAMB
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Terminal Material BRASS
Housing Material Aluminium
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 9 Weeks
