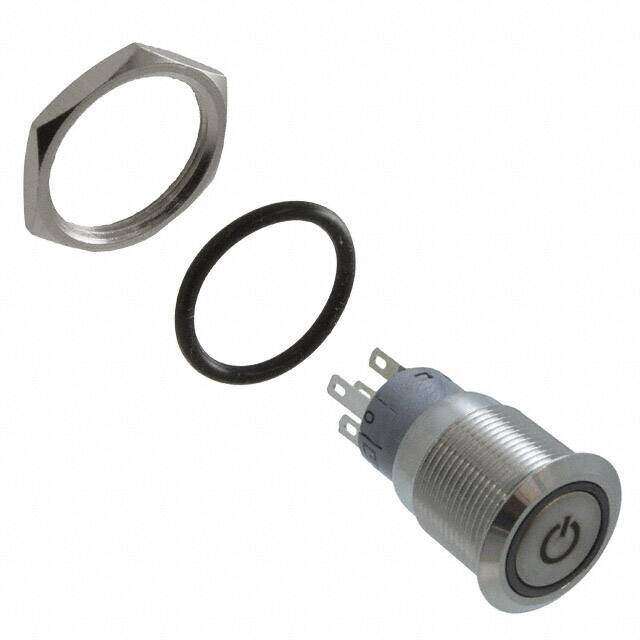

PV4F230SS-3K1-M01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 2A 24V
PDF
/
Buying Options
Total Price: USD $23.98
Unit Price: USD $23.98
≥1 USD $23.98
≥10 USD $21.77912
≥100 USD $19.6988
≥500 USD $18.964554
≥1000 USD $17.741082
≥3000 USD $15.1426
Inventory: 118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2012
Series PV4, LAMB
Feature Power Symbol
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal, Illuminated
HTS Code 8536.50.90.33
Voltage - Rated DC 24V
Current Rating (Amps) 2A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 2A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Actuator Type Round, Button, Flush
Circuit SPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 19.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Silver
Contact Current(DC)-Max 2A
Illumination Voltage (Nominal) 1.8 2.8VDC
Illumination Type, Color LED, Orange/Green
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Contact Current Rating 2A
Illumination Type LED
Illumination Color Green, Orange
Contact (DC) Max Rating R Load 2A@48VDC
Bushing Diameter 0.748 inch
Actuator Finish STAINLESS STEEL
Dimensions
Actuator Length 0.079 inch
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
