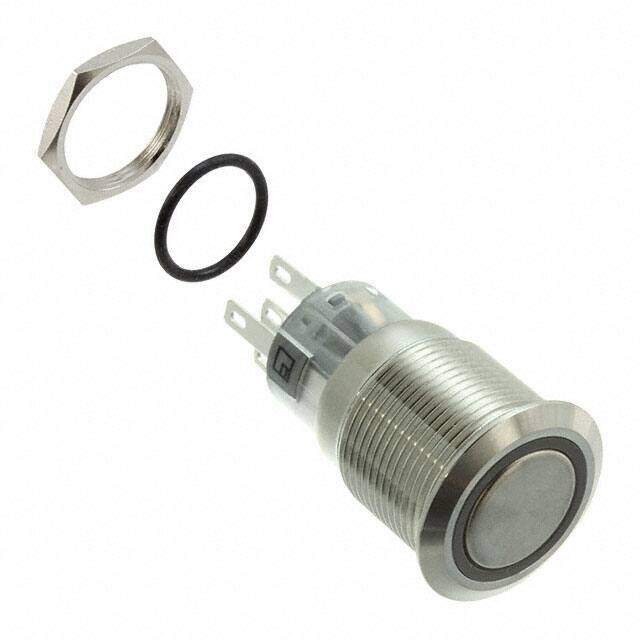

PV4F230SS-334
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Buying Options
Total Price: USD $26.74
Unit Price: USD $26.7432
≥1 USD $26.7432
≥10 USD $24.28624
≥100 USD $21.96678
≥500 USD $21.14816
≥1000 USD $19.783755
≥3000 USD $16.8861
Inventory: 60
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.079 inch
Technical
Actuator Finish STAINLESS STEEL
Bushing Diameter 0.748 inch
Actuator Travel 2.794 mm
Illumination Color Green
Illumination Type LED
Contact Current Rating 2A
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Contact Voltage(DC)-Max 24V
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 12VDC
Contact Current(DC)-Max 2A
Color - Actuator/Cap Silver
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 19.00mm Dia
Switch Function On-On
Circuit SPDT
Actuator Type Round, Button, Flush
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 2A DC
Voltage - Rated DC 48V
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV4, LAMB
Published 2012
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
End Contact Material BRASS
Terminal Material BRASS
Center Contact Material BRASS
Insulation Material POLYBUTYLENE TEREPHTHALATE
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 9 Weeks
