PV4F230SS-314
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

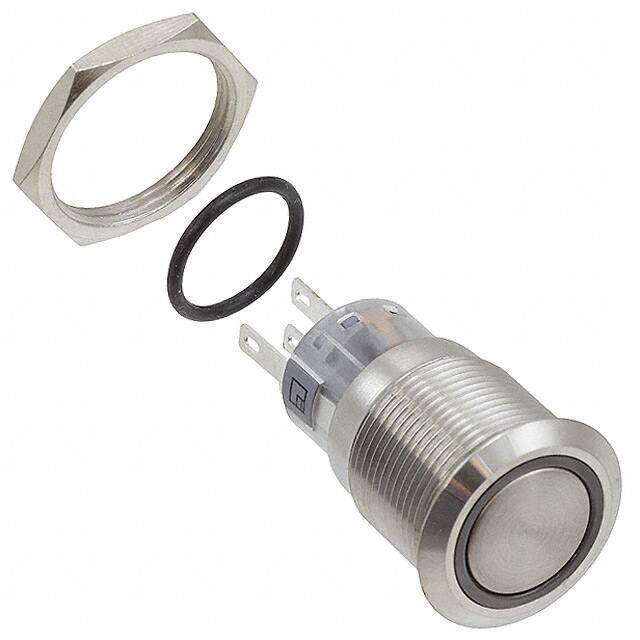

E-SWITCH PV4F230SS-314ANTI-VADAL PUSHBUTTON SWITCH, SPDT, 2A, 48VDC
PDF
/
Buying Options
Total Price: USD $28.38
Unit Price: USD $28.378441
≥1 USD $28.378441
≥10 USD $26.77211
≥100 USD $25.256708
≥500 USD $23.827086
≥1000 USD $22.478385
Inventory: 4127
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Hole Diameter 19 mm
Illumination Color Red
Illumination Type LED
Contact Current Rating 2A
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 12VDC
Panel Cutout Dimensions Circular - 19.00mm Dia
Switch Function On-On
Circuit SPDT
Actuator Type Round, Button, Flush
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 2A DC
Voltage - Rated DC 24V
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV4, LAMB
Published 2012
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Housing Material Stainless Steel
Mounting Type Panel Mount, Front
Mount Bushing, Front, Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 9 Weeks
