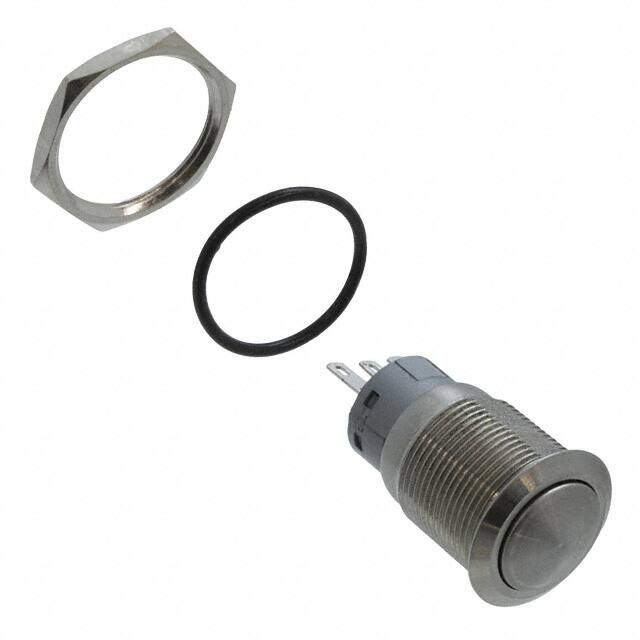

PV4DS2B0SSG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Inventory: 8103
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Stainless Steel
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2011
Series PV4, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Anti-Vandal
Voltage - Rated DC 24V
Current Rating (Amps) 2A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 2A
Termination Style Solder Lug
Actuator Type Round, Button, Flush
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 19.00mm Dia
Color - Actuator/Cap Silver
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Illumination Type LED
Illumination Color Blue
Hole Diameter 16 mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-2
Ratings Dust Tight, IP65, Water Resistant
