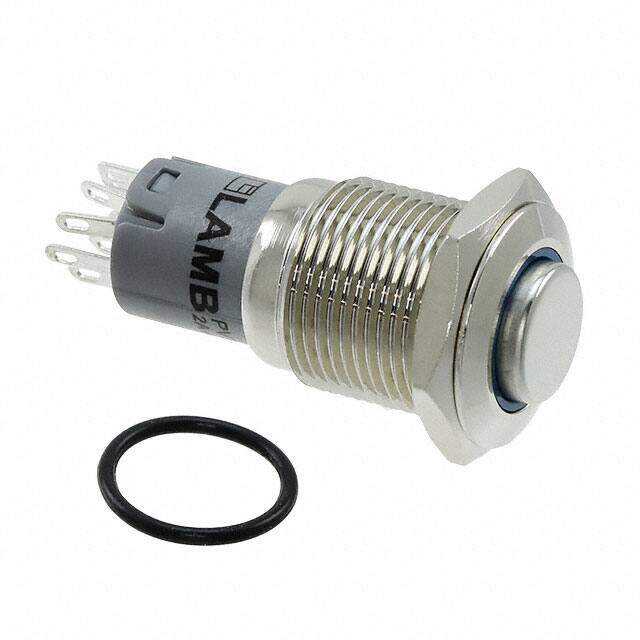

PV3WH2B0SS-341
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Buying Options
Total Price: USD $15.35
Unit Price: USD $15.3472
≥1 USD $15.3472
≥10 USD $13.75616
≥100 USD $12.47114
≥500 USD $12.01772
≥1000 USD $11.261897
≥3000 USD $10.43049
Inventory: 97
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Brass
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2012
Series PV3, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Additional Feature 2.8V, RING STYLE, BLUE LENS
Voltage - Rated DC 48V
Current Rating (Amps) 2A DC
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 2A
Termination Style Solder Lug
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Silver
Contact Current(DC)-Max 2A
Illumination Voltage (Nominal) 2.8VDC
Illumination Type, Color LED, Blue
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 50,000 Cycles
Throw Configuration DPDT, DPST, SPDT
Max Voltage Rating (DC) 48V
Mechanical Life 200,000 Cycles
Illumination Type Illuminated, LED
Illumination Color Red
Hole Diameter 16 mm
Contact (DC) Max Rating R Load 2A@48VDC
Contact Function ON-(ON)
Bushing Length 0.791 inch
Actuator Finish STAINLESS STEEL
Dimensions
Body Height 8.9154mm
Length - Termination 0.236 inch
Actuator Length 0.154 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
Ratings Dust Tight, IP65, Water Resistant
