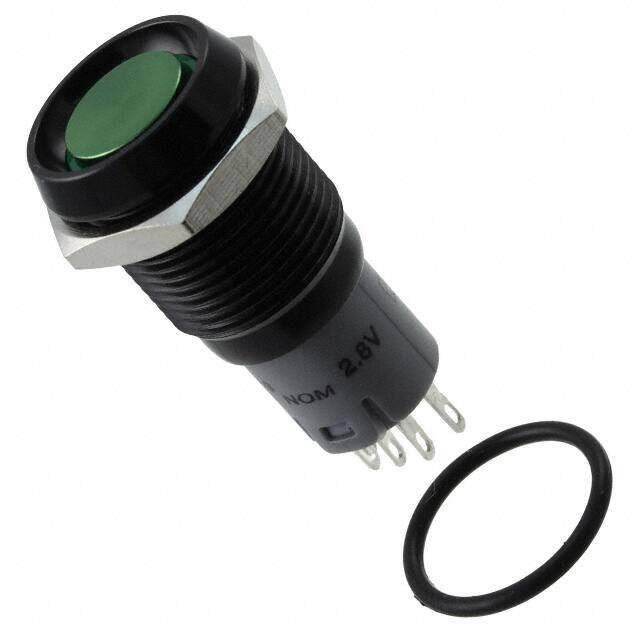

PV3WG2B018G-331
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Buying Options
Total Price: USD $18.11
Unit Price: USD $18.1104
≥1 USD $18.1104
≥10 USD $14.87926
≥100 USD $14.32471
Inventory: 131
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.146 inch
Length - Termination 0.236 inch
Body Height 8.9154mm
Technical
Body Color BLACK
Bushing Length 0.791 inch
Contact Function ON-(ON)
Contact (DC) Max Rating R Load 2A@48VDC
Hole Diameter 16 mm
Illumination Type LED
Contact Current Rating 2A
Mechanical Life 200,000 Cycles
Throw Configuration DPDT, SPDT
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2.8VDC
Contact Current(DC)-Max 2A
Color - Actuator/Cap Green
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button, Full Guard
Termination Style Solder Lug
Current Rating 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 2A DC
Voltage - Rated DC 48V
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV3, LAMB
Published 2012
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
End Contact Material SILVER CADMIUM OXIDE
Terminal Material BRASS
Center Contact Material SILVER CADMIUM OXIDE
Housing Material Aluminium
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold
Supply Chain
Factory Lead Time 9 Weeks
