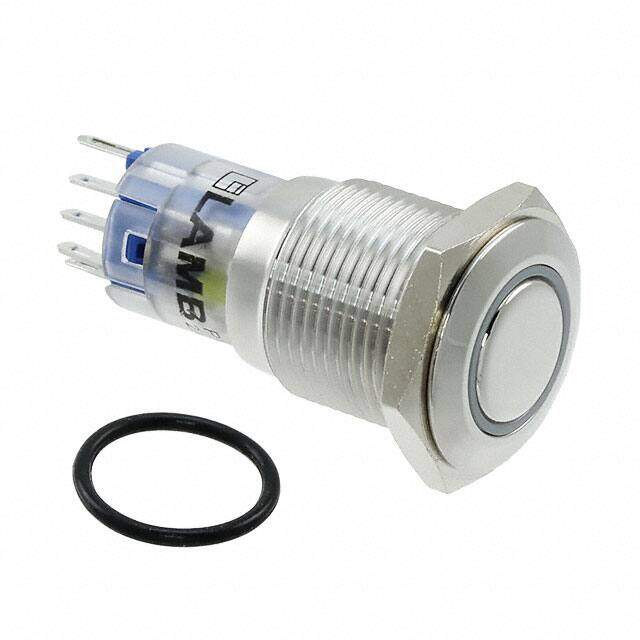

PV3WF2B0SS-3N4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Buying Options
Total Price: USD $14.34
Unit Price: USD $14.337701
≥1 USD $14.337701
≥10 USD $13.526128
≥100 USD $12.760502
≥500 USD $12.038206
≥1000 USD $11.356805
Inventory: 1444
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Aluminium
Actuator Material STAINLESS STEEL
Terminal Material BRASS
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Series PV3, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Voltage - Rated DC 48V
Current Rating (Amps) 2A DC
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 2A
Termination Style Solder Lug
Body Length or Diameter 10.795mm
Actuator Type Round, Button, Flush
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Silver
Contact Current(DC)-Max 2A
Illumination Voltage (Nominal) 12VDC
Illumination Type, Color LED, Green/Blue
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 50,000 Cycles
Throw Configuration SPDT, SPST
Mechanical Life 200,000 Cycles
Illumination Type Illuminated, LED
Illumination Color Green
Hole Diameter 16 mm
Contact (DC) Max Rating R Load 2A@48VDC
Contact Function ON-(ON)
Bushing Length 0.791 inch
Actuator Finish STAINLESS STEEL
Dimensions
Body Height 8.9154mm
Length - Termination 0.236 inch
Actuator Length 0.059 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-2
Ratings Dust Tight, IP65, IP67, Water Resistant, Waterproof
