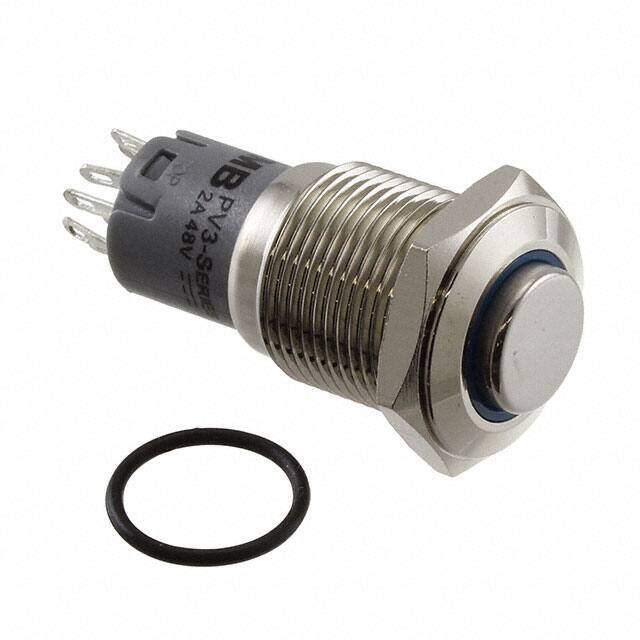

PV3H2H0NN-341
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Buying Options
Total Price: USD $12.49
Unit Price: USD $12.492761
≥1 USD $12.492761
≥10 USD $11.78563
≥100 USD $11.118514
≥500 USD $10.489162
≥1000 USD $9.895439
Inventory: 1155
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Brass
Center Contact Material PHOSPHOR BRONZE
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2012
Series PV3, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Voltage - Rated DC 48V
Current Rating (Amps) 2A DC
Ingress Protection IP40
Current Rating 2A
Termination Style Solder Lug
Actuator Type Round, Button
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Silver
Contact Current(DC)-Max 2A
Illumination Voltage (Nominal) 2.8VDC
Illumination Type, Color LED, Blue
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 50,000 Cycles
Throw Configuration DPDT, DPST
Mechanical Life 200,000 Cycles
Illumination Type Illuminated, LED
Illumination Color Green
Hole Diameter 16 mm
Contact (DC) Max Rating R Load 2A@48VDC
Contact Function ON-(ON)
Bushing Length 0.791 inch
Actuator Finish NICKEL
Dimensions
Body Height 8.9154mm
Length - Termination 0.236 inch
Actuator Length 0.154 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-2
