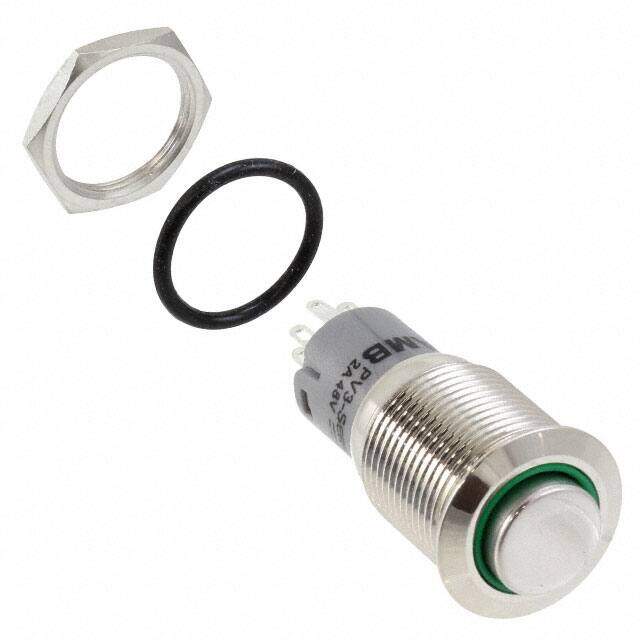

PV3H2H0NN-331
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Buying Options
Total Price: USD $12.71
Unit Price: USD $12.7072
≥1 USD $12.7072
≥10 USD $11.39424
≥100 USD $10.3301
≥500 USD $9.95456
≥1000 USD $9.32844
≥3000 USD $8.63977
Inventory: 29
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.154 inch
Length - Termination 0.236 inch
Body Height 8.9154mm
Technical
Actuator Finish NICKEL
Bushing Length 0.791 inch
Contact Function ON-(ON)
Contact (DC) Max Rating R Load 2A@48VDC
Hole Diameter 16 mm
Illumination Color Red
Illumination Type Illuminated, LED
Mechanical Life 200,000 Cycles
Throw Configuration DPDT, DPST
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2.8VDC
Contact Current(DC)-Max 2A
Color - Actuator/Cap Silver
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Button
Termination Style Solder Lug
Current Rating 2A
Ingress Protection IP40
Current Rating (Amps) 2A DC
Voltage - Rated DC 48V
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV3, LAMB
Published 2012
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Center Contact Material PHOSPHOR BRONZE
Housing Material Brass
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 9 Weeks
