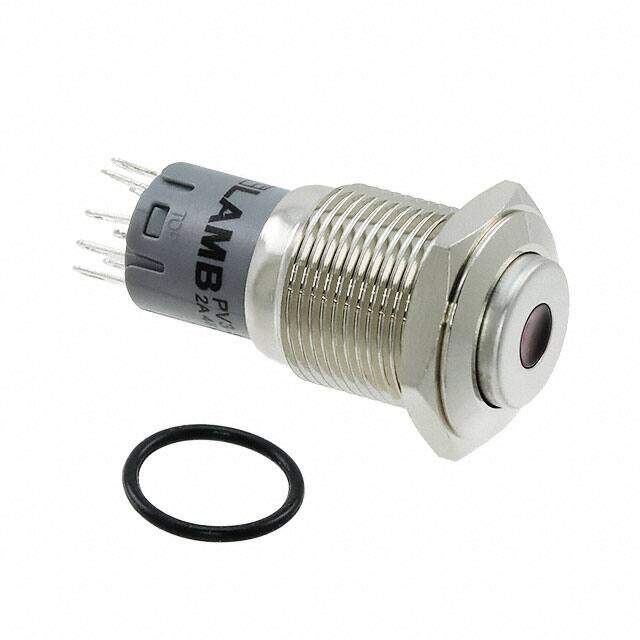

PV3H2H0NN-214
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Buying Options
Total Price: USD $14.31
Unit Price: USD $14.3088
≥1 USD $14.3088
≥10 USD $12.826
≥100 USD $12.262272
≥500 USD $11.627968
≥1000 USD $11.205216
≥3000 USD $10.500477
Inventory: 34
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Brass
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2011
Series PV3, LAMB
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Anti-Vandal, Illuminated
Voltage - Rated DC 48V
Current Rating (Amps) 2A DC
Ingress Protection IP40
Current Rating 2A
Termination Style Solder Lug
Actuator Type Round, Button
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 12VDC
Illumination Type, Color LED, Red
Electrical Life 50,000 Cycles
Throw Configuration DPDT, DPST
Mechanical Life 200,000 Cycles
Illumination Type Illuminated, LED
Illumination Color Red
Hole Diameter 16 mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-2
