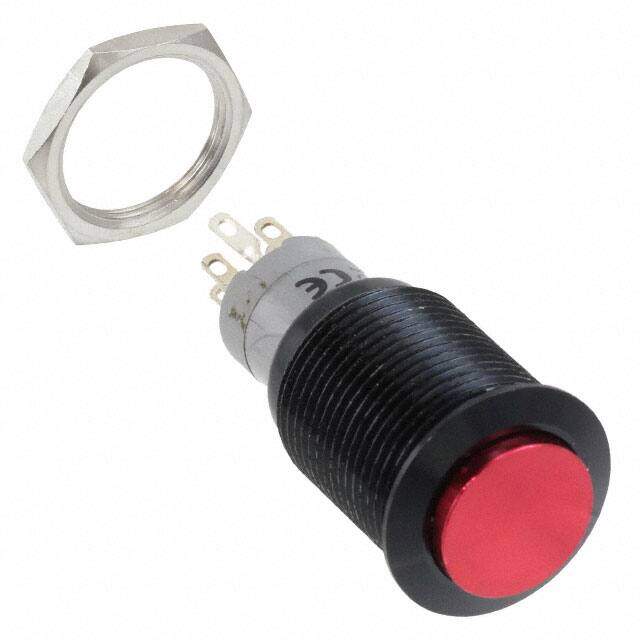

PV3H2H019
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 2A 48V
PDF
/
Inventory: 4834
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Center Contact Plating SILVER
Center Contact Material PHOSPHOR BRONZE
Terminal Material BRASS
End Contact Material SILVER ALLOY
End Contact Plating SILVER
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Series PV3, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal
Voltage - Rated DC 48V
Current Rating (Amps) 2A DC
Ingress Protection IP40
Current Rating 2A
Termination Style Solder Lug
Actuator Type Round, Button
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Red
Contact Current(DC)-Max 2A
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 50,000 Cycles
Mechanical Life 200,000 Cycles
Contact (DC) Max Rating R Load 2A@48VDC
Contact Function ON-(ON)
Bushing Length 0.791 inch
Body Color BLACK
Bushing Diameter 0.629 inch
Dimensions
Body Height 8.9154mm
Length - Termination 0.236 inch
Actuator Length 0.154 inch
Compliance
RoHS Status ROHS3 Compliant
