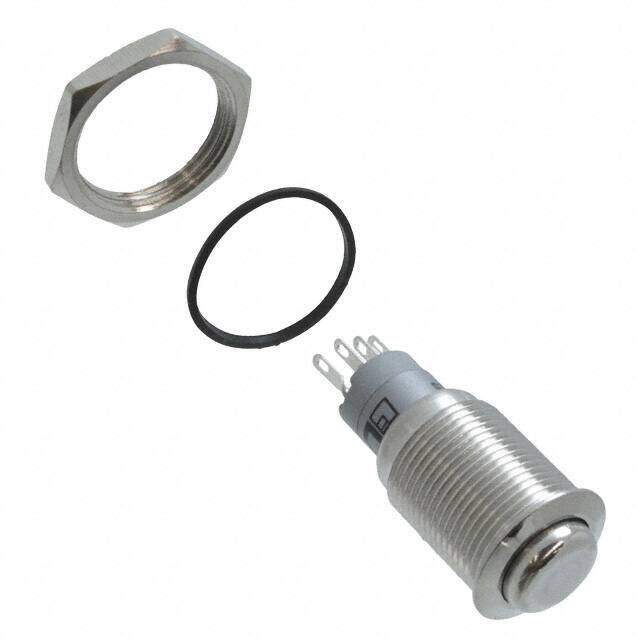

PV3H2B0SS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 2A 48V
PDF
/
Buying Options
Total Price: USD $8.6
Unit Price: USD $8.5976
≥1 USD $8.5976
≥10 USD $7.76424
≥100 USD $7.3095
Inventory: 83
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.154 inch
Length - Termination 0.236 inch
Body Height 8.9154mm
Technical
Actuator Finish STAINLESS STEEL
Bushing Length 0.791 inch
Contact Function ON-(ON)
Contact (DC) Max Rating R Load 2A@48VDC
Hole Diameter 16 mm
Illumination Color Blue
Illumination Type Illuminated
Mechanical Life 200,000 Cycles
Throw Configuration SPDT, SPST
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Contact Current(DC)-Max 2A
Color - Actuator/Cap Silver
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Termination Style Solder Lug
Current Rating 2A
Ingress Protection IP40
Current Rating (Amps) 2A DC
Voltage - Rated DC 48V
Type Anti-Vandal
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV3, LAMB
Published 2011
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Center Contact Material PHOSPHOR BRONZE
Actuator Material STAINLESS STEEL
Housing Material Brass
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 9 Weeks
