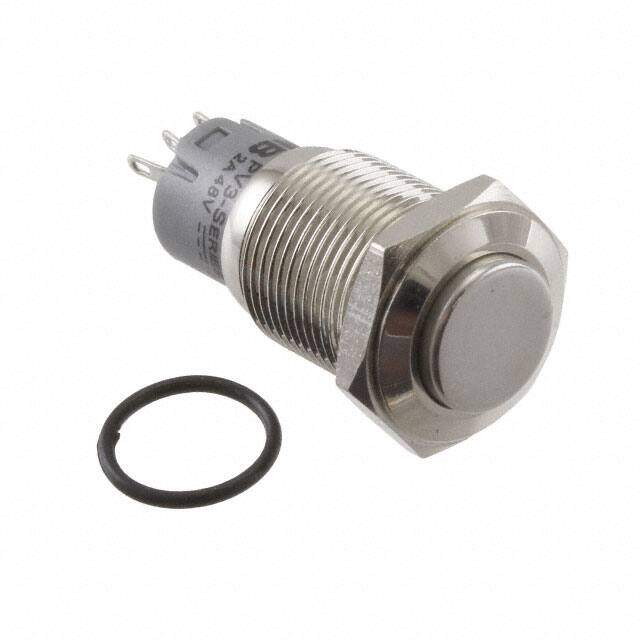

PV3H2B0NNG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches 0-2A 48VDC On-(On) 16mm Nickel 1 Pole
PDF
/
Buying Options
Total Price: USD $11.24
Unit Price: USD $11.2376
≥1 USD $11.2376
≥10 USD $10.1552
≥100 USD $9.666272
≥500 USD $9.177696
≥1000 USD $8.851832
≥3000 USD $8.308784
Inventory: 105
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.154 inch
Length - Termination 0.236 inch
Body Height 8.9154mm
Technical
Actuator Finish NICKEL
Bushing Diameter 0.629 inch
Bushing Length 0.791 inch
Contact Function ON-(ON)
Contact (DC) Max Rating R Load 2A@48VDC
Mechanical Life 200,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Contact Current(DC)-Max 2A
Color - Actuator/Cap Silver
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Termination Style Solder Lug
Current Rating 2A
Ingress Protection IP40
Current Rating (Amps) 2A DC
Voltage - Rated DC 48V
Type Anti-Vandal
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV3, LAMB
Published 2012
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
End Contact Plating GOLD
Terminal Material BRASS
Center Contact Material PHOSPHOR BRONZE
Center Contact Plating GOLD
Actuator Material BRASS
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 9 Weeks
