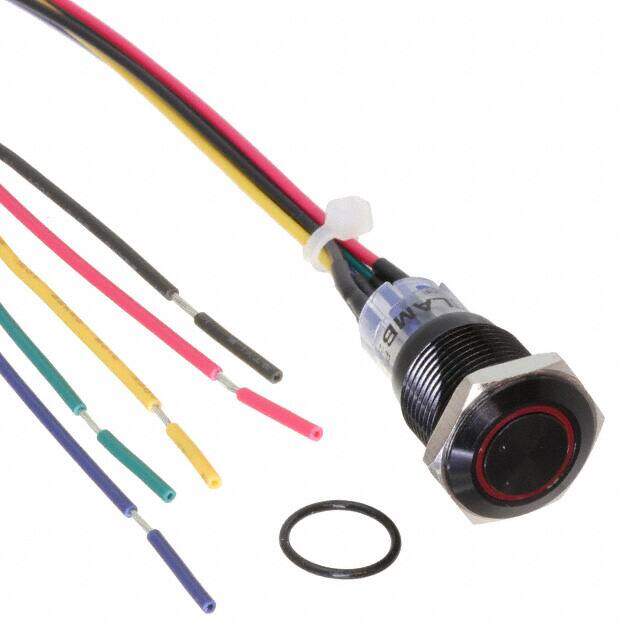

PV3FWB011-314
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
16MM ANTI-VANDAL ILLUMINATED SEA
PDF
/
Buying Options
Total Price: USD $4.6
Unit Price: USD $4.596201
≥1 USD $4.596201
Inventory: 1165
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Mechanical Life 200,000 Cycles
Electrical Life 50,000 Cycles
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 12VDC
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button, Flush
Termination Style Wire Leads
Ingress Protection IP40
Current Rating (Amps) 2A DC
Voltage - Rated DC 48V
Type Anti-Vandal, Illuminated
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series PV3, LAMB
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Mounting Type Panel Mount, Front
Supply Chain
Factory Lead Time 9 Weeks
