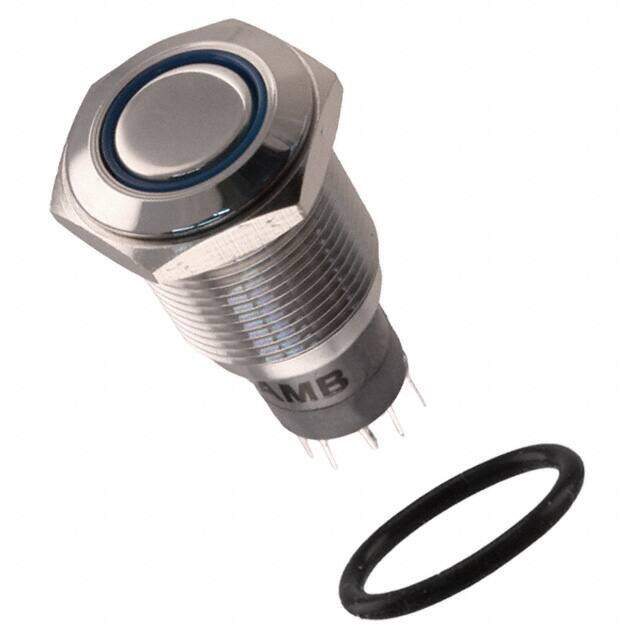

PV3F2H0SS-341
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 2A 48V
PDF
/
Buying Options
Total Price: USD $14.77
Unit Price: USD $14.7664
≥1 USD $14.7664
≥10 USD $13.24224
≥100 USD $12.0054
≥500 USD $11.568814
≥1000 USD $10.841195
≥3000 USD $10.040835
Inventory: 235
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material STAINLESS STEEL
Center Contact Material PHOSPHOR BRONZE
Terminal Material BRASS
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2012
Series PV3, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Voltage - Rated DC 48V
Current Rating (Amps) 2A DC
Ingress Protection IP40
Current Rating 2A
Termination Style Solder Lug
Actuator Type Round, Button, Flush
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Silver
Contact Current(DC)-Max 2A
Illumination Voltage (Nominal) 2.8VDC
Illumination Type, Color LED, Blue
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 50,000 Cycles
Mechanical Life 200,000 Cycles
Contact Current Rating 2A
Illumination Type LED
Illumination Color Blue
Contact (DC) Max Rating R Load 2A@48VDC
Contact Function ON-(ON)
Bushing Length 0.791 inch
Bushing Diameter 0.63 inch
Actuator Finish STAINLESS STEEL
Dimensions
Body Height 8.9154mm
Length - Termination 0.236 inch
Actuator Length 0.059 inch
Compliance
RoHS Status ROHS3 Compliant
