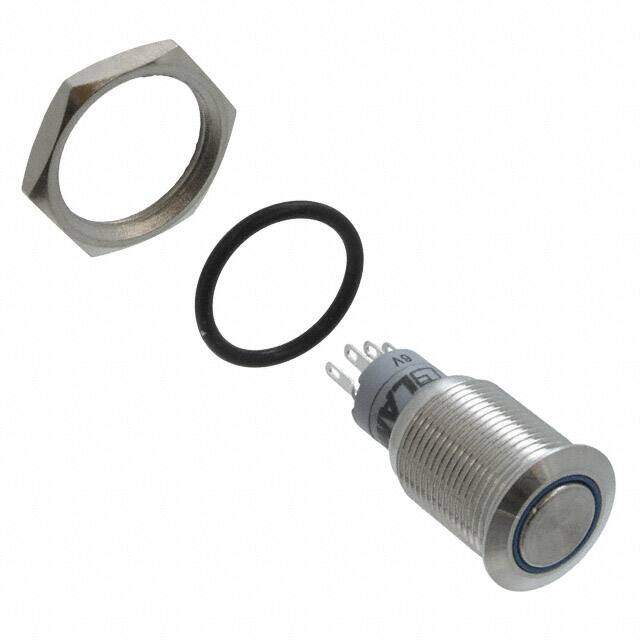

PV3F2B0BB-343
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 2A 48V
PDF
/
Buying Options
Total Price: USD $10.45
Unit Price: USD $10.4456
≥1 USD $10.4456
≥10 USD $9.36232
≥100 USD $9.0563
Inventory: 26
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Aluminium
Center Contact Material PHOSPHOR BRONZE
Terminal Material BRASS
End Contact Material COPPER ALLOY
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2012
Series PV3, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Additional Feature BLUE LENS COLOR
Voltage - Rated DC 48V
Current Rating (Amps) 2A DC
Ingress Protection IP40
Current Rating 2A
Termination Style Solder Lug
Body Length or Diameter 10.3886mm
Actuator Type Round, Button, Flush
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Silver
Contact Current(DC)-Max 2A
Illumination Voltage (Nominal) 6VDC
Illumination Type, Color LED, Blue
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 50,000 Cycles
Throw Configuration SPDT, SPST
Mechanical Life 200,000 Cycles
Contact Current Rating 2A
Illumination Type Illuminated, LED
Illumination Color White
Hole Diameter 16 mm
Contact (DC) Max Rating R Load 2A@48VDC
Contact Function ON-(ON)
Bushing Length 0.791 inch
Dimensions
Body Height 8.9154mm
Length - Termination 0.236 inch
Actuator Length 0.059 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-2
