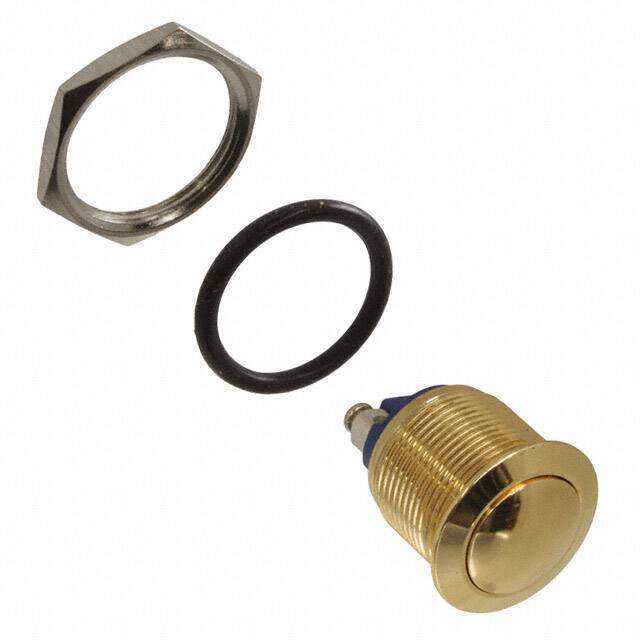

PV1S640GG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST-NO 2A 48V
PDF
/
Buying Options
Total Price: USD $8.65
Unit Price: USD $8.652629
≥1 USD $8.652629
≥10 USD $8.162862
≥100 USD $7.700817
≥500 USD $7.264914
≥1000 USD $6.853694
Inventory: 1000
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Insulation Material POLYBUTYLENE TEREPHTHALATE
Center Contact Material COPPER
End Contact Material COPPER
End Contact Plating SILVER
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2011
Series PV1, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Anti-Vandal
Voltage - Rated DC 48V
Current Rating (Amps) 2A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 2A
Termination Style Screw Terminal
Actuator Type Round, Button, Domed
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 19.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Gold
Contact Current(DC)-Max 2A
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 200,000 Cycles
Throw Configuration SPST
Mechanical Life 1,000,000 Cycles
Contact Current Rating 2A
Contact (DC) Max Rating R Load 2A@48VDC
Contact Function OFF-(ON)
Bushing Diameter 0.748 inch
Dimensions
Length - Termination 0.157 inch
Actuator Length 0.142 inch
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
