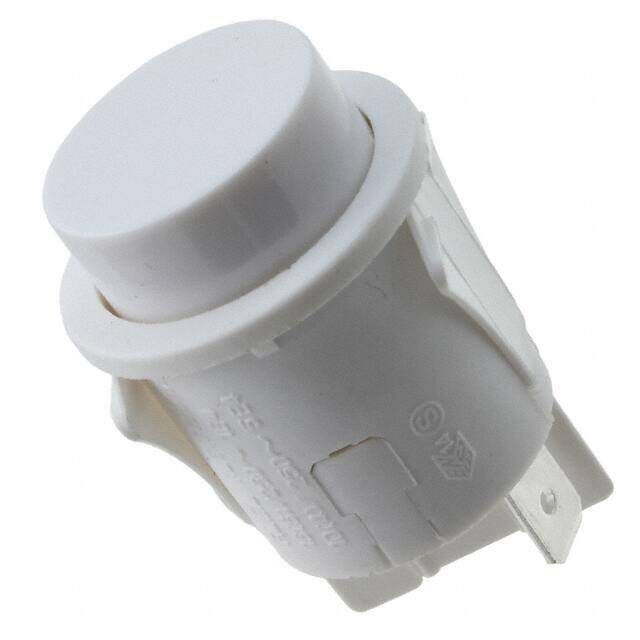

PR144C2200
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 16A 125V
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2056
≥1 USD $1.2056
≥10 USD $1.075554
≥100 USD $1.01713
≥500 USD $0.968651
≥1000 USD $0.92473
≥3000 USD $0.885834
Inventory: 629
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.394 inch
Length - Termination 0.386 inch
Body Height 22.5044mm
Technical
Actuator Finish GLOSS
Contact (AC) Max Power Rating R Load 0.75HP@250VAC
Actuator Travel 3.81 mm
Contact Function OFF-(ON)
Contact Voltage(AC)-Max 250V
Contact (AC) Max Rating R Load 16A@250VAC
Throw Configuration SPST
Electrical Life 10,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Color - Actuator/Cap White
Insulation Resistance 100000000Ohm
Contact Resistance 0.035mOhm
Panel Cutout Dimensions Circular - 25.00mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Body Length or Diameter 23.0124mm
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating 16A
Current Rating (Amps) 16A AC
Type Standard
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PR1, LAMB
Packaging Bulk
Operating Temperature -20°C~105°C
Physical
End Contact Plating SILVER
End Contact Material COPPER
Terminal Material COPPER
Center Contact Material COPPER
Center Contact Plating SILVER
Actuator Material POLYAMIDE
Insulation Material POLYAMIDE
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Supply Chain
Factory Lead Time 9 Weeks
