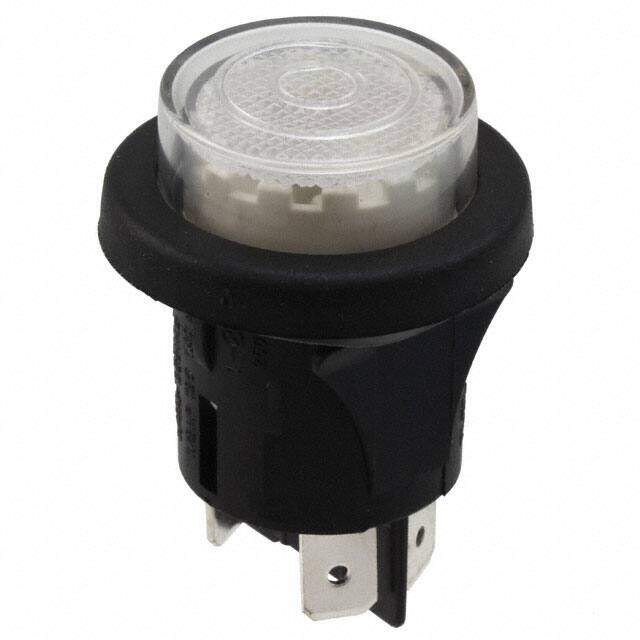

PR142C1000-107/ACC-F03-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches Illuminated Power SPST 16A 250V
PDF
/
Inventory: 2582
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Silver
Mounting Type Panel Mount, Snap-In
Surface Mount NO
Housing Material Polyamide
Actuator Material POLYCARBONATE
Center Contact Material COPPER
Terminal Material COPPER
End Contact Material COPPER
Technical
Operating Temperature -20°C~105°C
Packaging Bulk
Published 2011
Series PR1, LAMB
Feature PVC Cap and Frame
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard, Illuminated
Current Rating (Amps) 16A AC
Ingress Protection IP54 - Dust Protected, Water Resistant
Current Rating 16A
Termination Style Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit DPST
Switch Function Off-On
Panel Cutout Dimensions Circular - 25.00mm Dia
Contact Resistance 0.035mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Clear
Illumination Voltage (Nominal) 250VAC
Illumination Type, Color Neon, Clear
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 10,000 Cycles
Throw Configuration DP
Illumination Type Illuminated
Contact Voltage(AC)-Max 125V
Body Color BLACK
Contact (AC) Max Power Rating R Load 0.75HP@250VAC
Dimensions
Body Height 21.3106mm
Length - Termination 0.385 inch
Actuator Length 0.512 inch
Compliance
RoHS Status ROHS3 Compliant
