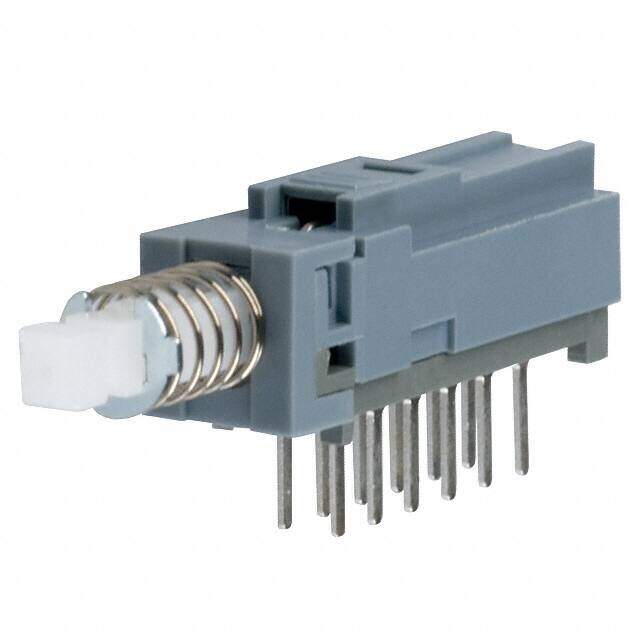

PBH4UOANAGX
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH 4PDT 0.1A 30V
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5544
≥1 USD $0.5544
≥10 USD $0.49192
≥100 USD $0.466752
≥500 USD $0.443872
≥1000 USD $0.423183
≥3000 USD $0.404501
Inventory: 1152
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 HB
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 4mm
Length - Termination 0.157 inch
Body Height 22.1996mm
Technical
PCB Hole Count 12
Contact (DC) Max Rating R Load 0.1A@30VDC
Illumination Type Illuminated
Contact Current Rating 100mA
Mechanical Life 30,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 10,000 Cycles
Dielectric Withstanding Voltage 250VAC V
Contact Current(DC)-Max 0.1A
Color - Actuator/Cap White
Insulation Resistance 100000000Ohm
Contact Resistance 100mOhm
Switch Function On-Mom
Circuit 4PDT
Actuator Type Plunger for Cap
Body Breadth 9.0932 mm
Body Length or Diameter 7.2898mm
Termination Style PC Pin
Current Rating 100mA
Orientation Right Angle
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series PBH
Published 2006
Packaging Bulk
Operating Temperature -20°C~70°C
Physical
Terminal Material BRASS
Actuator Material Polyoxymethylene
Housing Material Polybutylene
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Silver
Contact Material Bronze
Supply Chain
Factory Lead Time 11 Weeks
