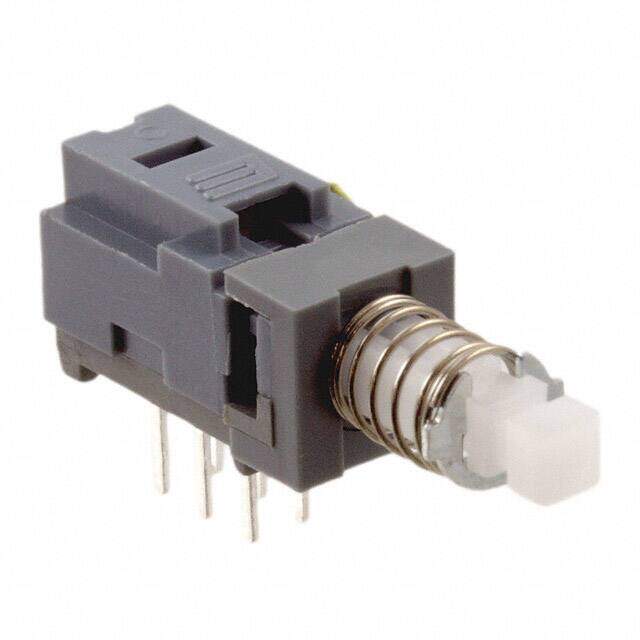

PBH2UOANAGX
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.1A 30V
PDF
/
Buying Options
Total Price: USD $1.02
Unit Price: USD $1.022749
≥1 USD $1.022749
≥200 USD $0.396496
≥500 USD $0.382054
≥1000 USD $0.375489
Inventory: 1169
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 HB
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 4mm
Technical
Illumination Type Illuminated
Contact Current Rating 100mA
Mechanical Life 30,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 10,000 Cycles
Color - Actuator/Cap White
Contact Resistance 100mOhm
Switch Function On-Mom
Circuit DPDT
Actuator Type Plunger for Cap
Termination Style PC Pin
Current Rating 100mA
Orientation Right Angle
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series PBH
Published 2006
Packaging Bulk
Operating Temperature -20°C~70°C
Physical
Actuator Material Polyoxymethylene
Housing Material Polybutylene
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Silver
Contact Material Bronze
Supply Chain
Factory Lead Time 11 Weeks
