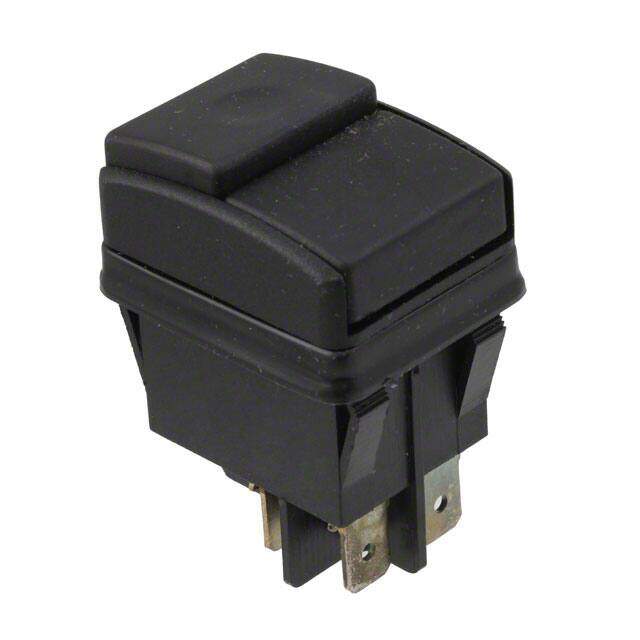

PB242D1100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 20A 125V
PDF
/
Inventory: 4922
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP54, Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.67 inch
Length - Termination 0.437 inch
Body Height 18.3896mm
Technical
Contact Voltage(AC)-Max 250V
Contact (AC) Max Rating R Load 12A@250VAC
Contact Current(AC)-Max 12A
Electrical Life 10,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Color - Actuator/Cap Black
Insulation Resistance 5000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Rectangular - 30.00mm x 22.00mm
Switch Function Off-On
Circuit DPST
Actuator Type Square, Button, Dual
Body Breadth 21.3106 mm
Body Length or Diameter 27.9908mm
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating 20A
Ingress Protection IP54 - Dust Protected, Water Resistant
Current Rating (Amps) 20A AC
Type Standard
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PB2, LAMB
Published 2012
Packaging Bulk
Operating Temperature -20°C~85°C
Physical
End Contact Plating SILVER
End Contact Material COPPER
Center Contact Material COPPER
Center Contact Plating SILVER
Actuator Material POLYAMIDE
Insulation Material POLYAMIDE
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
