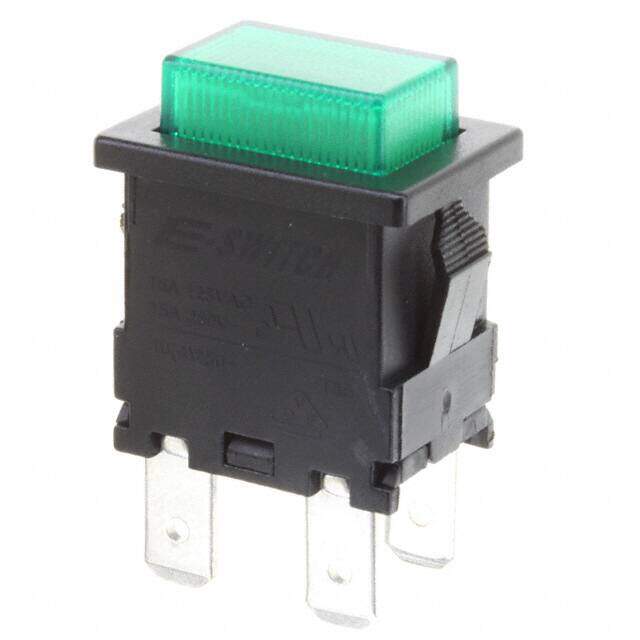

PB1973CBLKGILEF3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST 15A 250V
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.523847
≥1 USD $0.523847
Inventory: 8054
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Nylon
Actuator Material POLYCARBONATE
Terminal Material BRASS
End Contact Material BRASS
Technical
Operating Temperature -10°C~55°C
Packaging Bulk
Published 2007
Series PB1973
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Type Standard, Illuminated
Voltage - Rated DC 125V
Current Rating (Amps) 15A AC 10A DC
Orientation Vertical
Current Rating 10A
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 250V
Body Length or Diameter 21.0058mm
Body Breadth 15.0114 mm
Actuator Type Rectangular, Button
Circuit SPST
Switch Function On-Off
Panel Cutout Dimensions Rectangular - 19.20mm x 13.00mm
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Green
Illumination Voltage (Nominal) 12VDC
Illumination Type, Color Incandescent, Green
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 10,000 Cycles
Mechanical Life 30,000 Cycles
Illumination Type Illuminated
Contact Current(AC)-Max 15A
Contact (AC) Max Rating R Load 15A@250VAC
Body Color BLACK
Dimensions
Body Height 19.6088mm
Length - Termination 0.323 inch
Actuator Length 0.256 inch
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
