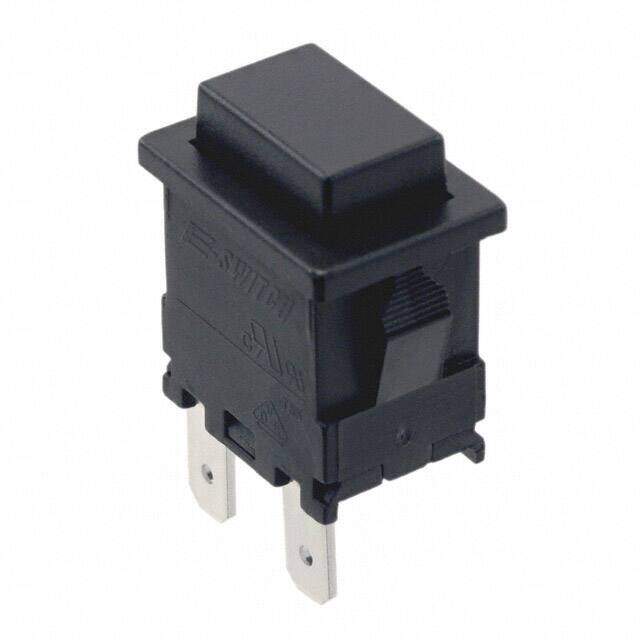

PB1973ABLKBLKEF0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST 15A 250V
PDF
/
Buying Options
Total Price: USD $1.94
Unit Price: USD $1.9448
≥1 USD $1.9448
≥10 USD $1.7424
≥100 USD $1.495516
≥500 USD $1.264806
Inventory: 666
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material NYLON
Actuator Material POLYCARBONATE
Center Contact Material SILVER ALLOY
Terminal Material BRASS
Technical
Operating Temperature -10°C~55°C
Packaging Bulk
Published 2007
Series PB1973
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Type Standard
Additional Feature NON-ILLUMINATED
Voltage - Rated DC 125V
Current Rating (Amps) 15A AC 10A DC
Orientation Vertical
Current Rating 10A
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 250V
Body Length or Diameter 19.2024mm
Actuator Type Rectangular, Button
Circuit SPST
Switch Function On-Off
Panel Cutout Dimensions Rectangular - 19.20mm x 13.00mm
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 10,000 Cycles
Mechanical Life 30,000 Cycles
Contact Current Rating 15A
Contact (AC) Max Rating R Load 15A@250VAC
Contact Function OFF-ON
Dimensions
Body Height 17.907mm
Length - Termination 0.311 inch
Actuator Length 0.256 inch
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
