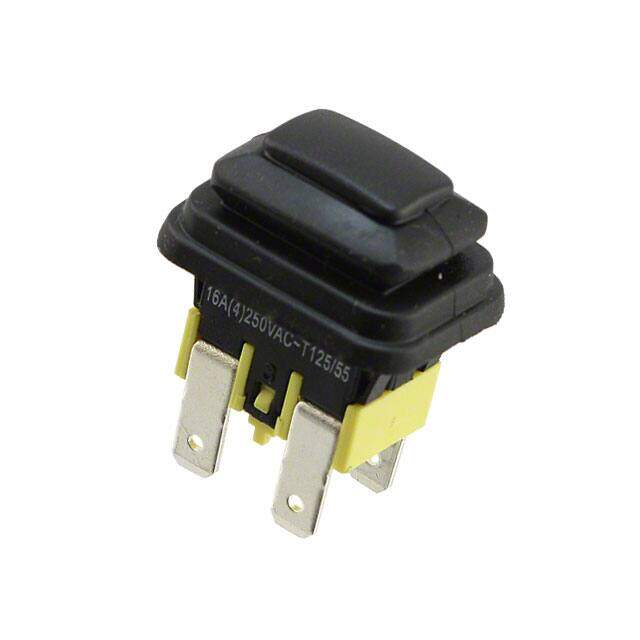

PA4R12C1100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 16A 125V
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.720782
≥1 USD $0.720782
Inventory: 7917
Minimum: 1
-
+
Technical Details
Compliance
Ratings Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.433 inch
Length - Termination 0.335 inch
Body Height 14.1986mm
Technical
Actuator Travel 6.5024 mm
Contact Voltage(AC)-Max 250V
Contact (AC) Max Rating R Load 16A@250VAC
Electrical Life 10,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Color - Actuator/Cap Black
Insulation Resistance 100000000Ohm
Contact Resistance 0.02mOhm
Panel Cutout Dimensions Rectangular - 19.00mm x 13.00mm
Switch Function Off-On
Circuit DPST
Actuator Type Rectangular, Button, Rubber Cap
Body Breadth 12.3952 mm
Body Length or Diameter 18.796mm
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.187 (4.7mm)
Current Rating 16A
Ingress Protection Water Resistant
Current Rating (Amps) 16A AC
Type Standard
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PA4, LAMB
Published 2011
Packaging Bulk
Operating Temperature -20°C~65°C
Physical
End Contact Material SILVER ALLOY
Terminal Material COPPER
Center Contact Material SILVER ALLOY
Actuator Material POLYAMIDE
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Supply Chain
Factory Lead Time 11 Weeks
