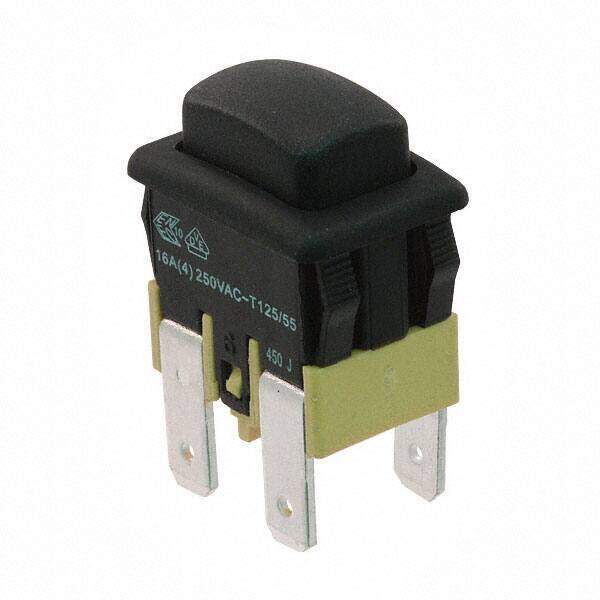

PA41EC1100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPST-NO 16A 125V
PDF
/
Buying Options
Total Price: USD $1.95
Unit Price: USD $1.9536
≥1 USD $1.9536
≥10 USD $1.75296
≥100 USD $1.65616
≥500 USD $1.583472
≥1000 USD $1.5026
≥3000 USD $1.438008
Inventory: 1123
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.295 inch
Length - Termination 0.335 inch
Body Height 15.0114mm
Technical
Actuator Travel 2.9972 mm
Contact Function OFF-(ON)
Contact Voltage(AC)-Max 250V
Contact (AC) Max Rating R Load 16A@250VAC
Throw Configuration DPST
Electrical Life 10,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Color - Actuator/Cap Black
Insulation Resistance 100000000Ohm
Contact Resistance 0.02mOhm
Panel Cutout Dimensions Rectangular - 19.00mm x 13.00mm
Switch Function Off-Mom
Circuit DPST-NO
Actuator Type Rectangular, Button
Body Breadth 12.7762 mm
Body Length or Diameter 18.796mm
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.187 (4.7mm)
Current Rating 16A
Current Rating (Amps) 16A AC
Type Standard
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PA4, LAMB
Published 2011
Packaging Bulk
Operating Temperature -20°C~65°C
Physical
End Contact Material SILVER ALLOY
Terminal Material COPPER
Center Contact Material SILVER ALLOY
Actuator Material POLYAMIDE
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Supply Chain
Factory Lead Time 11 Weeks
