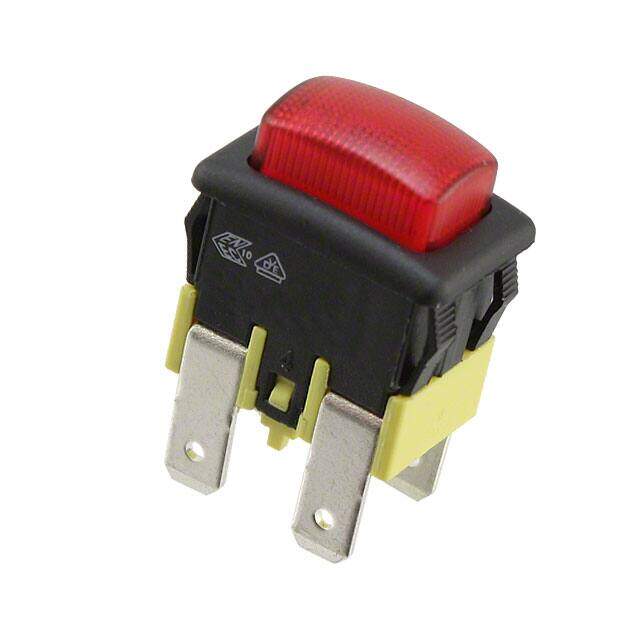

PA412C1000-116
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPST 16A 125V
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.677456
≥1 USD $0.677456
Inventory: 7881
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Actuator Material POLYCARBONATE
Center Contact Material SILVER ALLOY
Terminal Material COPPER
End Contact Material SILVER ALLOY
Technical
Operating Temperature -20°C~65°C
Packaging Bulk
Published 2012
Series PA4, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Type Standard, Illuminated
Current Rating (Amps) 16A AC
Current Rating 16A
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 125V
Body Length or Diameter 18.796mm
Body Breadth 12.7762 mm
Actuator Type Rectangular, Button
Circuit DPST
Switch Function Off-On
Panel Cutout Dimensions Rectangular - 19.00mm x 13.00mm
Contact Resistance 0.02mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Red
Illumination Voltage (Nominal) 125VAC
Illumination Type, Color Neon, Red
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 10,000 Cycles
Illumination Type Neon
Contact (AC) Max Rating R Load 16A@250VAC
Contact Voltage(AC)-Max 250V
Actuator Travel 2.9972 mm
Body Color BLACK
Dimensions
Body Height 15.0114mm
Length - Termination 0.335 inch
Actuator Length 0.295 inch
Compliance
RoHS Status ROHS3 Compliant
