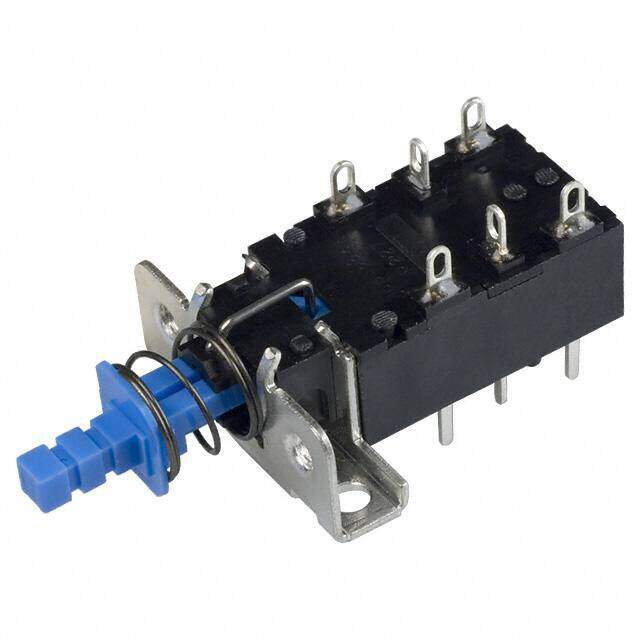

P227EE2B20A

E-Switch
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSHBUTTON DPDT 7A 125V
PDF
/
Buying Options
Total Price: USD $7.48
Unit Price: USD $7.480907
≥1 USD $7.480907
≥10 USD $7.057454
≥100 USD $6.657979
≥500 USD $6.28111
≥1000 USD $5.925572
Inventory: 1388
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Contact Plating Silver
Mount Panel, Through Hole
Mounting Type Panel Mount, Right Angle, Rear
Housing Material POLYBUTYLENE TEREPHTHALATE
Actuator Material ACETAL
Center Contact Material COPPER ALLOY
Terminal Material COPPER ALLOY
End Contact Material COPPER ALLOY

Technical

Operating Temperature -20°C~85°C
Packaging Bulk
Published 2001
Series P227
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Current Rating (Amps) 7A AC
Orientation Right Angle
Current Rating 7A
Termination Style PC Pin
Voltage - Rated AC 125V
Body Breadth 11.303 mm
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-On
Contact Resistance 20mOhm
Color - Actuator/Cap Blue
Max Voltage Rating (AC) 250V
Dielectric Withstanding Voltage 1500VRMS V
Electrical Life 6,000 Cycles
Contact Current Rating 7A
Contact Current(AC)-Max 7A
Contact (AC) Max Rating R Load 7A@125VAC
Actuator Travel 5.5118 mm

Dimensions

Length 26mm
Width 9.4mm
Body Height 30.48mm
Actuator Length 8.5mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
